TPS61221 - 微型低输入电压升压转换器

TPS61221是TI德州仪器公司的一款转换器（集成开关）产品，TPS61221是微型低输入电压升压转换器，本站介绍了TPS61221的封装应用图解、特点和优点、功能等，并给出了与TPS61221相关的TI元器件型号供参考。

TPS61221 - 微型低输入电压升压转换器 - 转换器（集成开关） - DC/DC开关稳压器 - 德州仪器

产品特性

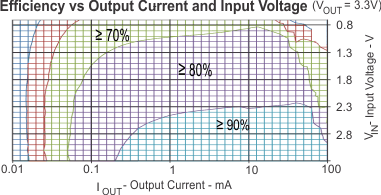

Up to 95% Efficiency at Typical Operating Conditions
5.5 μA Quiescent Current
Startup Into Load at 0.7 V Input Voltage
Operating Input Voltage from 0.7 V to 5.5 V
Pass-Through Function during Shutdown
Minimum Switching Current 200 mA
Protections:
- Output Overvoltage
- Overtemperature
- Input Undervoltage Lockout
Adjustable Output Voltage from 1.8 V to 6 V
Fixed Output Voltage Versions
Small 6-pin SC-70 Package

产品应用

Battery Powered Applications
- 1 to 3 Cell Alkaline, NiCd or NiMH
- 1 cell Li-Ion or Li-Primary
Solar or Fuel Cell Powered Applications
Consumer and Portable Medical Products
Personal Care Products
White or Status LEDs
Smartphones

产品说明

The TPS6122x family devices provide a power-supply solution for products powered by either a single-cell, two-cell, or three-cell alkaline, NiCd or NiMH, or one-cell Li-Ion or Li-polymer battery. Possible output currents depend on the input-to-output voltage ratio. The boost converter is based on a hysteretic controller topology using synchronous rectification to obtain maximum efficiency at minimal quiescent currents. The output voltage of the adjustable version can be programmed by an external resistor divider, or is set internally to a fixed output voltage. The converter can be switched off by a featured enable pin. While being switched off, battery drain is minimized. The device is offered in a 6-pin SC-70 package (DCK) measuring 2 mm x 2 mm to enable small circuit layout size.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
TPS61220	SC-70 (6)	2.00mm x 1.25mm
TPS61221
TPS61222
