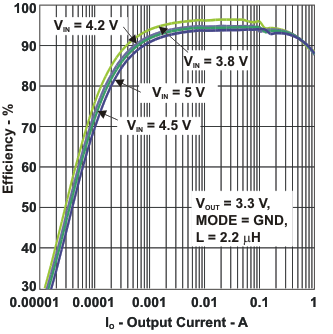

TPS62290 - 产品图解：
TPS62290-采用 2x2mm SON 封装的 2.25MHz 1A 降压转换器
TPS62290-转换器（集成开关）-DC/DC开关稳压器-电源管理
TPS62290-TPS6229x 1-A Step Down Converter in 2 x 2 DRV Package
TI芯片：
承诺原装正品
专营TI德州仪器，真正优化您的供应链
TI产品 - TPS62290介绍

TPS62290 - 采用 2x2mm SON 封装的 2.25MHz 1A 降压转换器

TPS62290是TI德州仪器公司的一款转换器（集成开关）产品，TPS62290是采用 2x2mm SON 封装的 2.25MHz 1A 降压转换器，本站介绍了TPS62290的封装应用图解、特点和优点、功能等，并给出了与TPS62290相关的TI元器件型号供参考。

TPS62290 - 采用 2x2mm SON 封装的 2.25MHz 1A 降压转换器 - 转换器（集成开关） - DC/DC开关稳压器 - 德州仪器

产品特性
  • High Efficiency - Greater than 95%
  • Output Current up to 1000 mA
  • VIN Range From 2.3 V to 6.3 V for Li-ion Batteries with Extended Voltage Range
  • 2.25-MHz Fixed Frequency Operation
  • Power Save Mode at Light Load Currents
  • Output Voltage Accuracy in PWM Mode ±1.5%
  • Fixed Output Voltage Options
  • Typical 15-μA Quiescent Current
  • 100% Duty Cycle for Lowest Dropout
  • Voltage Positioning at Light Loads
  • Available in a 2-mm × 2-mm × 0.8-mm WSON (6) Package (DRV)
产品应用
  • Mobile Phones, Smart-Phones
  • Wireless LAN
  • Pocket PCs
  • Low Power DSP Supply
  • Portable Media Players
  • Point-of-Load (POL) Applications
产品说明

The TPS6229x devices are highly efficient synchronous step down DC/DC converters optimized for battery powered portable applications. They provide up to 1000-mA output current from a single Li-ion cell.

With an input voltage range of 2.3 V to 6.3 V, the devices support batteries with extended voltage range and are ideal to power portable applications like mobile phones and other portable equipment.

The TPS6229x devices operate at 2.25-MHz fixed switching frequency and enter power save mode operation at light load currents to maintain high efficiency over the entire load current range.

The power save mode is optimized for low output voltage ripple. For low noise applications, the devices can be forced into fixed frequency pulse width modulation (PWM) mode by pulling the MODE pin high. In the shutdown mode, the current consumption is reduced to less than 1μA. The TPS6229x devices allow the use of small inductors and capacitors to achieve a small solution size.

The TPS6229x devices operate over a free air temperature range of –40°C to 85°C. The devices are available in a 2-mm × 2-mm 6-pin WSON package (DRV).

产品器件信息
PART NUMBERPACKAGEBODY SIZE (NOM)
TPS6229xSON (6)2.00 mm × 2.00 mm
