TPS65135 - 单电感器、多路输出 (SIMO) 稳压器

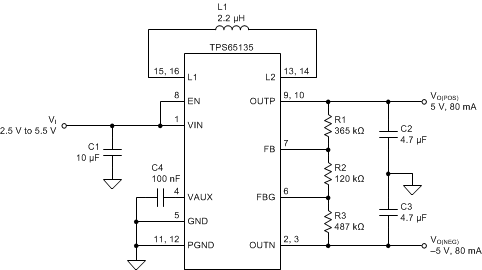

TPS65135是TI德州仪器公司的一款转换器（集成开关）产品，TPS65135是单电感器、多路输出 (SIMO) 稳压器，本站介绍了TPS65135的封装应用图解、特点和优点、功能等，并给出了与TPS65135相关的TI元器件型号供参考。

TPS65135 - 单电感器、多路输出 (SIMO) 稳压器 - 转换器（集成开关） - DC/DC开关稳压器 - 德州仪器

产品特性

Single-Inductor, Multiple-Output Topology
2.5-V to 5.5-V Input Voltage Range
750-mW Output Power at VI = 2.9 V
Positive Output Voltages Up to 6 V
Negative Output Voltage Down to –7 V
1% Output Voltage Accuracy
Up to 50% Output Current Mismatch Allowed
Excellent Line Regulation
Advanced Power-Save Mode for Light-Load Efficiency
Low-Noise Operation
Out-of-Audio Mode
Short-Circuit Protection
Thermal Shutdown
3-mm × 3-mm Thin QFN Package

产品应用

AMOLED Display Power Supplies
LCD Power Supplies
Split-Rail Power Supplies for Op-Amps, Data Converters, Data Interfaces, etc.

产品说明

The TPS65135 device is a high-efficiency split-rail power supply. Thanks to its single-inductor, multiple-output (SIMO) topology, the converter uses very few external components. The device operates with a buck-boost topology and generates positive and negative output voltages above or below the input supply voltage. The SIMO topology achieves excellent line and load regulation, which is necessary, for example, to avoid disturbance of a mobile phone display as a result of input voltage variations that occur during transmit periods in mobile communication systems. The device can also be used as a general-purpose split-rail supply as long as the output current mismatch between the rails is less than 50%.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
TPS65135	WQFN (16)	3.00 mm × 3.00 mm
