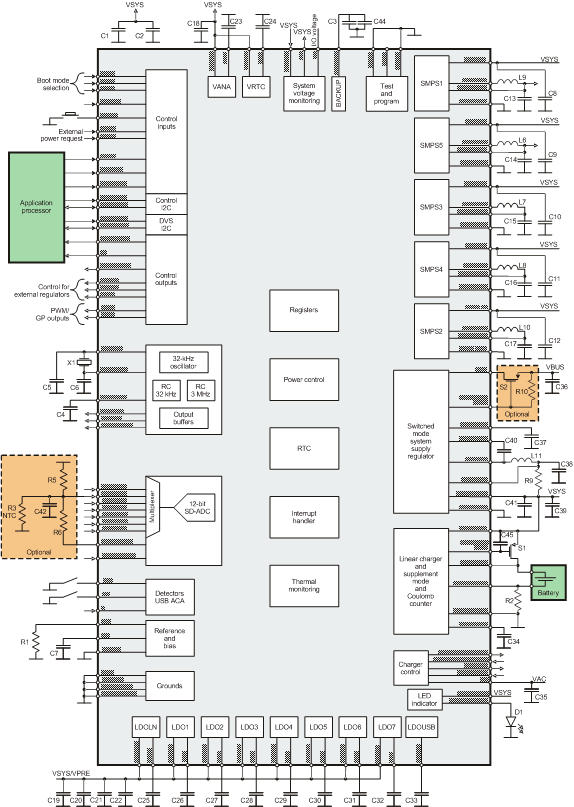

TPS80032是TI德州仪器公司的一款TI芯片产品，TPS80032是具有电源路径和电池充电器的完全集成电源管理，本站介绍了TPS80032的封装应用图解、特点和优点、功能等，并给出了与TPS80032相关的TI元器件型号供参考。

TPS80032 - 具有电源路径和电池充电器的完全集成电源管理 - TI芯片 - 电源管理多通道IC(PMIC)解决方案 - 德州仪器

1 Device Overview

1.1 Features

Five Highly Efficient Buck Converters
- One 3 MHz, 0.6 to 2.1 V at 5.0 A, DVS-Capable
- One 6 MHz, 0.6 to 2.1 V at 2.5 A, DVS-Capable
- Three 6 MHz, 0.6 to 2.1 V at 1.1 A, One Being DVS-Capable
11 General-Purpose Low-Dropout Voltage Regulators (LDOs)
- Six 1.0 to 3.3 V at 0.2 A with Battery or Preregulated Supply:
  - One can be Used as Vibrator Driver
  - One 1.0 to 3.3 V at 50 mA with Battery or Preregulated Supply
  - One Low-Noise 1.0 to 3.3 V at 50 mA with Battery or Preregulated Supply
  - One 3.3 V at 100 mA USB LDO
  - Two LDOs for TPS80032 Internal Use
USB OTG Module:
- ID Detection, Accessory Charger Adapter (ACA) Support
- Accessory Detection Protocol (ADP) Support
Backup Battery Charger
12-bit Sigma-Delta Analog-to-Digital Converter (ADC) with 19 Input Channels:
- Seven External Input Channels
13-bit Coulomb Counter with Four Programmable Integration Periods
Low-Power Consumption:
- 8 µA in BACKUP State
- 20 µA in WAIT-ON State
- 110 µA in SLEEP State, with Two DC-DCs Active
Real-Time Clock (RTC) with Timer and Alarm Wake-Up:
- Three Buffered 32-kHz Outputs
SIM and SD/MMC Card Detections
Two Digital PWM Outputs
Thermal Monitoring:
- High-Temperature Warning
- Thermal Shutdown
Control:
- Configurable Power-Up and Power-Down Sequences (OTP Memory)
- Configurable Sequences Between SLEEP and ACTIVE States (OTP Memory)
- Three Digital Output Signals that can be Included in the Startup Sequence to Control External Devices
- Two Inter-Integrated Circuit (I2C) Interfaces
- All Resources Configurable by I2C
System Voltage Regulator/Battery Charger with Power Path from USB:
- Input Current Limit to Comply with USB Standard
- 3-MHz Switched-Mode Regulator with Integrated Power FET for up to 2.0-A Current
- Dedicated Control Loop for Battery Current and Voltage
- External Low-Ohmic FET for Power Path and Battery Charging
- Boost Mode Operation for USB OTG
- Supplement Mode to Deliver Current from Battery During Power Path Operation
- Charger for Single-Cell Li-Ion and Li-Polymer Battery Packs
- Safety Timer and Reset Control
- Thermal Protection
- Input/Output Overvoltage Protection
- Charging Indicator LED Driver
- Compliant with:
  - USB 2.0
  - OTG and EH 2.0
  - USB Battery Charging 1.2
  - YD/T 1591-2006
  - Japanese Battery Charging Guidelines (JEITA)
Battery Voltage Range from 2.5 to 5.5 V
Package 5.21 mm × 5.36 mm 155-pin WCSP

1.2 Applications

Mobile Phones and Smart Phones
Tablets
Gaming Handsets
Portable Media Players
Portable Navigation Systems
Handheld Devices
Industrial Applications

1.3 Description

The TPS80032 device is an integrated power-management integrated circuit (PMIC) for applications powered by a rechargeable battery. The device provides five configurable step-down converters with up to 5.0-A current capability for memory, processor core, I/O, auxiliary, preregulation for LDOs, and so forth. The device also contains nine LDO regulators for external use that can be supplied from a battery or a preregulated supply. The power-up/power-down controller is configurable and can support any power-up/power-down sequence (programmed in OTP memory). The RTC provides three 32-kHz clock outputs: seconds, minutes, hours, day, month, and year information; as well as alarm wakeup and timer. The TPS80032 device supports 32-kHz clock generation based on a crystal oscillator.

The device integrates a switched-mode system supply regulator from a USB connector. The device includes power paths from the USB and battery with supplemental mode for immediate startup, even with an empty battery. The battery switch uses an external low-ohmic PMOS transistor allowing minimal serial resistance during fast charging and when operating from battery. The device can also be used without the external PMOS transistor; the battery is then always tied to the system supply and the switched-mode regulator is used for battery charging.

The TPS80032 device is available in a 155-pin WCSP package, 5.21 mm × 5.36 mm with a 0.4-mm ball pitch.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE
TPS80032	YFF (155)	5.21 mm × 5.36 mm
