TS12A12511 - 具有负信号功能的 5Ω 单通道 SPDT 开关

TS12A12511是TI德州仪器公司的一款模拟开关产品，TS12A12511是具有负信号功能的 5Ω 单通道 SPDT 开关，本站介绍了TS12A12511的封装应用图解、特点和优点、功能等，并给出了与TS12A12511相关的TI元器件型号供参考。

TS12A12511 - 具有负信号功能的 5Ω 单通道 SPDT 开关 - 模拟开关 - 信号开关 - 德州仪器

产品特性

±2.7-V to ±6-V Dual Supply
2.7-V to 12-V Single Supply
5-Ω (Typical) ON-State Resistance
1.6-Ω (Typical) ON-State Resistance Flatness
3.3-V, 5-V Compatible Digital Control Inputs
Rail-to-Rail Analog Signal Handling
Fast tON, tOFF Times
Supports Both Digital and Analog Signal Applications
Tiny 8-Lead SOT-23, 8-Lead MSOP, and QFN-8 Packages
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Performance Tested per JESD 22
- ±2000-V Human Body Model (A114-B, Class II)
- ±1000-V Charged-Device Model (C101)

产品应用

Automatic Test Equipment
Power Routing
Communication Systems
Data Acquisition Systems
Sample-and-Hold Systems
Relay Replacement
Battery-Powered Systems

产品说明

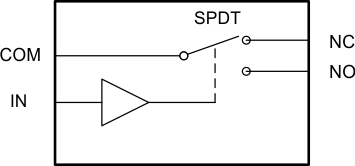

The TS12A12511 is a bidirectional, single-channel, single-pole double-throw (SPDT) analog switch that can pass signals with swings of 0 to 12 V or –6 V to 6 V. This switch conducts equally well in both directions when it is on. The device also offers a low ON-state resistance of 5 Ω (typical), which is matched to within 1 Ω between channels. The maximum current consumption is <1 μA and –3 dB bandwidth is >93 MHz. The TS12A12511 exhibits break-before-make switching action, preventing momentary shorting when switching channels. This device is available packaged in an 8-lead VSSOP, 8-lead SOT-23, and a 8-pin WSON.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
TS12A12511	SOT (8)	2.90 mm × 1.63 mm
	VSSOP (8)	3.00 mm × 3.00 mm
	WSON (8)	4.00 mm × 4.00 mm
