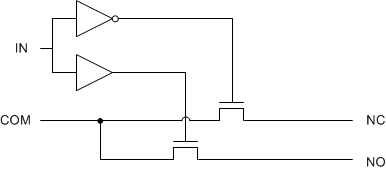

TS5A3157 - 产品图解：
TS5A3157 - 10Ω SPDT 模拟开关
TS5A3157是TI公司的一款模拟开关产品，TS5A3157是10Ω SPDT 模拟开关，本页介绍了TS5A3157的产品说明、应用、特性等，并给出了与TS5A3157相关的TI元器件型号供参考。
TS5A3157 - 10Ω SPDT 模拟开关 - 模拟开关 - 信号开关 - TI公司（Texas Instruments，德州仪器）
产品特性
- Low ON-State Resistance (10 Ω)
- Control Inputs Are 5-V Tolerant
- Low Charge Injection
- Excellent ON-State Resistance Matching
- Low Total Harmonic Distortion (THD)
- 1.65-V to 5.5-V Single-Supply Operation
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Performance Tested Per JESD 22
- 2000-V Human-Body Model (A114-B, Class II)
- 1000-V Charged-Device Model (C101)
产品应用
- Sample-and-Hold Circuits
- Battery-Powered Equipment
- Audio and Video Signal Routing
- Communication Circuits
产品说明
The TS5A3157 device is a single-pole double-throw (SPDT) analog switch that is designed to operate from 1.65 V to 5.5 V. This device can handle both digital and analog signals, and signals up to V+ can be transmitted in either direction.
产品器件信息
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| TS5A3157 | SOT-23 (6) | 2.90 mm × 1.60 mm |
| SC70 (6) | 2.00 mm × 1.25 mm | |
| DSBGA (6) | 1.39 mm × 0.89 mm |
