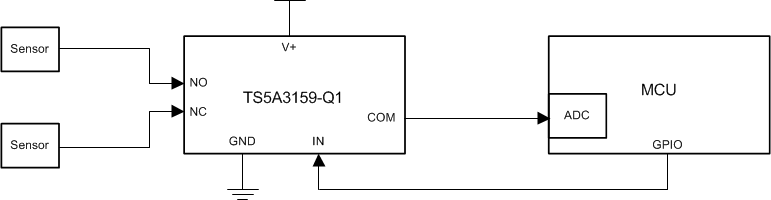

TS5A3159-Q1 - 产品图解：
TS5A3159-Q1 - 汽车类双路 1Ω SPDT 模拟开关
TS5A3159-Q1是TI公司的一款模拟开关产品，TS5A3159-Q1是汽车类双路 1Ω SPDT 模拟开关，本页介绍了TS5A3159-Q1的产品说明、应用、特性等，并给出了与TS5A3159-Q1相关的TI元器件型号供参考。
TS5A3159-Q1 - 汽车类双路 1Ω SPDT 模拟开关 - 模拟开关 - 信号开关 - TI公司（Texas Instruments，德州仪器）
产品特性
- Qualified for Automotive Applications
- AEC-Q100 Qualified with the Following Results:
- Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature Range
- Device HBM ESD Classification Level 2
- Device CDM ESD Classification Level C4B
- Specified Break-Before-Make Switching
- Low ON-State Resistance (1 Ω)
- Control Inputs are 5-V Tolerant
- Low Charge Injection
- Excellent ON-Resistance Matching
- Low Total Harmonic Distortion
- 1.65-V to 5.5-V Single-Supply Operation
产品应用
- Automotive Infotainment and Cluster
- Body Electronics and Lighting
产品说明
The TS5A3159-Q1 is a single-pole double-throw (SPDT) analog switch that is designed to operate from 1.65 V to 5.5 V. The device offers a low ON-state resistance and an excellent ON-resistance, matching with the break-before-make feature to prevent signal distortion during the transferring of a signal from one channel to another. The device has an excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable for portable audio applications.
产品器件信息
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| TS5A3159-Q1 | SOT-23 (6) | 2.90 mm × 4.00 mm |
