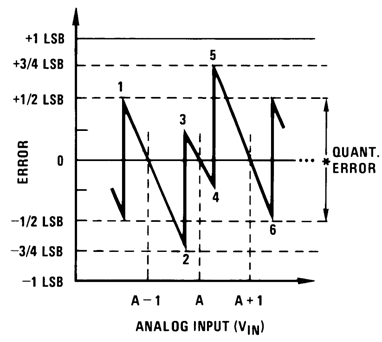

ADC0802-N - 产品图解：
ADC0802-N-兼容 8 位 μP 的 A/D 转换器
ADC0802-N-精密ADC(<=10MSPS)-模数转换器-数据转换器
ADC0802-N-ADC080x 8-Bit, μP-Compatible, Analog-to-Digital Converters
TI芯片：
承诺原装正品
专营TI德州仪器，真正优化您的供应链
TI产品 - ADC0802-N介绍

ADC0802-N - 兼容 8 位 μP 的 A/D 转换器

ADC0802-N是TI德州仪器公司的一款精密ADC(<=10MSPS)产品，ADC0802-N是兼容 8 位 μP 的 A/D 转换器，本站介绍了ADC0802-N的封装应用图解、特点和优点、功能等，并给出了与ADC0802-N相关的TI元器件型号供参考。

ADC0802-N - 兼容 8 位 μP 的 A/D 转换器 - 精密ADC(<=10MSPS) - 模数转换器 - 德州仪器

产品特性
  • Compatible With 8080-µP Derivatives – No Interfacing Logic Needed – Access Time 135 ns
  • Easy Interface to All Microprocessors, or Operates as a Stand-Alone Deivce
  • Differential Analog Voltage Inputs
  • Logic Inputs and Outputs Meet Both MOS and TTL Voltage-Level Specifications
  • Works With 2.5-V (LM336) Voltage Reference
  • On-Chip Clock Generator
  • 0-V to 5-V Analog Input Voltage Range With Single 5-V Supply
  • No Zero Adjust Required
  • 0.3-Inch Standard Width 20-Pin DIP Package
  • 20-Pin Molded Chip Carrier or Small Outline Package
  • Operates Ratiometrically or With 5 VDC, 2.5 VDC, or Analog Span Adjusted Voltage Reference
  • Key Specifications
    • Resolution: 8 Bits
    • Total Error: ±1/4 LSB, ±1/2 LSB and ±1 LSB
    • Conversion Time: 100 µs
产品应用
  • Operates With Any 8-Bit µP Processors or as a Stand-Alone Device
  • Interface to Temp Sensors, Voltage Sources, and Transducers
产品说明

The ADC0801, ADC0802, ADC0803, ADC0804, and ADC0805 devices are CMOS 8-bit successive approximation converters (ADC) that use a differential potentiometric ladder — similar to the 256R products. These converters are designed to allow operation with the NSC800 and INS8080A derivative control bus with Tri-state output latches directly driving the data bus. These ADCs appear like memory locations or I/O ports to the microprocessor and no interfacing logic is needed.

Differential analog voltage inputs allow increasing the common-mode rejection and offsetting the analog zero input voltage value. In addition, the voltage reference input can be adjusted to allow encoding any smaller analog voltage span to the full 8 bits of resolution.

产品器件信息
PART NUMBERPACKAGEBODY SIZE (NOM)
ADC0801, ADC0803PDIP (20)26.073 mm × 6.604 mm
ADC0802, ADC0804PDIP (20)26.073 mm × 6.604 mm
SOIC (20) 12.80 mm × 7.50 mm
