BQ294532技术文档下载：

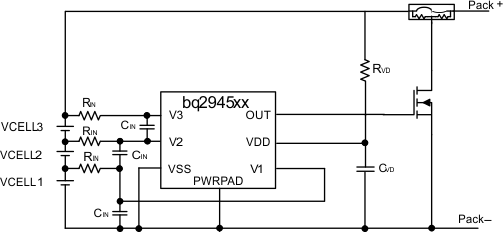

BQ294532 - 产品图解：
BQ294532 - 用于 2 到 3 节锂离子电池的过压保护器件，具有 4.50v OVP
BQ294532是TI公司的一款电池监控,保护及认证解决方案产品，BQ294532是用于 2 到 3 节锂离子电池的过压保护器件，具有 4.50v OVP，本页介绍了BQ294532的产品说明、应用、特性等，并给出了与BQ294532相关的TI元器件型号供参考。
BQ294532 - 用于 2 到 3 节锂离子电池的过压保护器件，具有 4.50v OVP - 电池监控,保护及认证解决方案 - 电池管理产品 - TI公司（Texas Instruments，德州仪器）
产品特性
- 2-Series and 3-Series Cell Overvoltage Monitor for Secondary Protection
- Fixed Programmable Delay Timer
- Fixed OVP Threshold
- Available Range From 3.85 V to 4.6 V
- Fixed OVP Delay Option: 4 s or 6.5 s
- High-Accuracy Overvoltage Protection: ±10 mV
- Low Power Consumption ICC ≈ 1 µA (VCELL(ALL) < VPROTECT)
- Low Leakage Current per Cell Input < 100 nA
- Small Package Footprint
- 6-Pin SON
产品应用
- Second-Level Protection in Li-Ion Battery Packs in:
- Tablets
- Slates
- Power Tools
- Notebook Computers
- Portable Equipment and Instrumentation
产品说明
The bq2945xx family of products is a secondary-level voltage monitor and protector for Li-Ion battery pack systems. Each cell is monitored independently for an overvoltage condition. Based on the configuration, an output is triggered after a fixed delay if any of the two or three cells has an overvoltage condition. This output is triggered into a high state after an overvoltage condition satisfies the specified delay timer.
产品器件信息
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| bq2945xx | SON (6) | 2.00 mm × 2.00 mm |
