DAC8811 - 16 位串行输入乘法数模转换器

DAC8811是TI德州仪器公司的一款精密DAC(=<10MSPS)产品，DAC8811是16 位串行输入乘法数模转换器，本站介绍了DAC8811的封装应用图解、特点和优点、功能等，并给出了与DAC8811相关的TI元器件型号供参考。

DAC8811 - 16 位串行输入乘法数模转换器 - 精密DAC(=<10MSPS) - 数模转换器 - 德州仪器

1 Features

±0.5 LSB DNL
16-Bit Monotonic
±1 LSB INL
Low Noise: 12 nV/√Hz
Low Power: IDD = 2 µA
2.7 V to 5.5 V Analog Power Supply
2 mA Full-Scale Current ±20%, with VREF = 10 V
50-MHz Serial Interface
0.5 μs Settling Time
4-Quadrant Multiplying Reference
Reference Bandwidth: 10 MHz
±10 V Reference Input
Reference Dynamics: -105 THD
Tiny 8-Lead 3 x 3 mm SON and 3 x 5 mm MSOP Packages
Industry-Standard Pin Configuration

2 Applications

Automatic Test Equipment
Instrumentation
Digitally Controlled Calibration
Industrial Control PLCs

3 Description

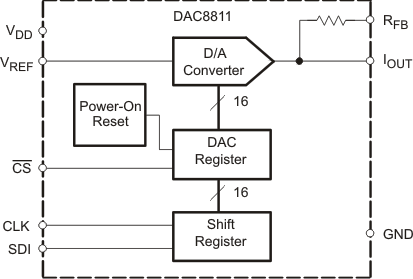

The DAC8811 multiplying digital-to-analog converter (DAC) is designed to operate from a single 2.7-V to 5.5-V supply.

The applied external reference input voltage VREF determines the full-scale output current. An internal feedback resistor (RFB) provides temperature tracking for the full-scale output when combined with an external I-to-V precision amplifier.

A serial data interface offers high-speed, three-wire microcontroller-compatible inputs using data-in (SDI), clock (CLK), and chip-select (CS).

On power-up, the DAC register is filled with zeroes, and the DAC output is at zero scale.

The DAC8811 is packaged in space-saving 8-lead SON and MSOP packages.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
DAC8811	VSSOP (8)	3.00mm x 3.00mm
DAC8811	VSON (8)	3.00mm x 3.00mm
