DS26C31T是TI公司的一款无产品，DS26C31T是CMOS 四路三态差动线路驱动器，本页介绍了DS26C31T的产品说明、应用、特性等，并给出了与DS26C31T相关的TI元器件型号供参考。
DS26C31T - CMOS 四路三态差动线路驱动器 - 无 - RS-422收发器 - TI公司（Texas Instruments，德州仪器）
- TTL Input Compatible
- Typical Propagation Delays: 6 ns
- Typical Output Skew: 0.5 ns
- Outputs Will Not Load Line When VCC = 0 V
- DS26C31T Meets the Requirements of EIA Standard RS-422
- Operation From Single 5-V Supply
- Tri-State Outputs for Connection to System Buses
- Low Quiescent Current
- Available in Surface Mount
- Mil-Std-883C Compliant
Differential Line Driver for RS-422 Applications
The DS26C31 device is a quad differential line driver designed for digital data transmission over balanced lines. The DS26C31T meets all the requirements of EIA standard RS-422 while retaining the low power characteristics of CMOS. The DS26C31M is compatible with EIA standard RS-422; however, one exception in test methodology is taken(2). This enables the construction of serial and terminal interfaces while maintaining minimal power consumption.

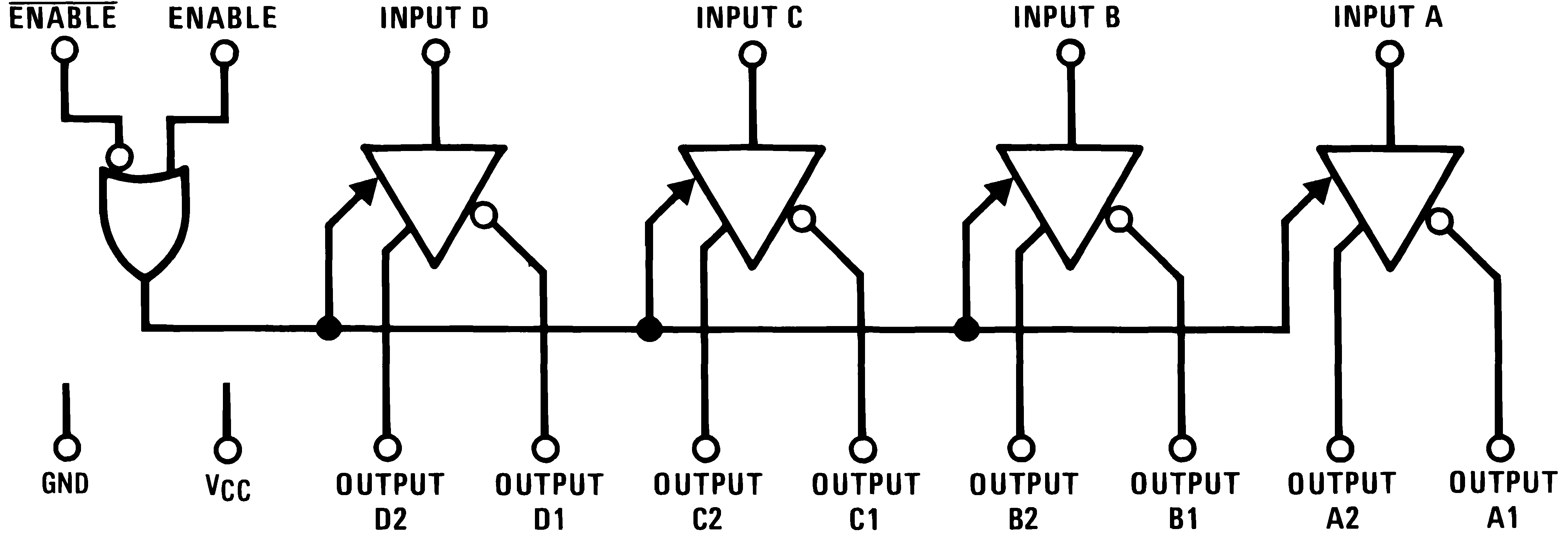

The DS26C31 accepts TTL or CMOS input levels and translates these to RS-422 output levels. This part uses special output circuitry that enables the drivers to power down without loading down the bus. This device has enable and disable circuitry common to all four drivers. The DS26C31 is pin compatible to the AM26LS31 and the DS26LS31.
All inputs are protected against damage due to electrostatic discharge by diodes to VCC and ground.
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| DS26C31M | SNLS3759577 | 9.90 mm × 3.91 mm |
| PDIP (16) | 19.304 mm × 6.35 mm | |
| DS26C31T | SNLS3759577 | 9.90 mm × 3.91 mm |
| PDIP (16) | 19.304 mm × 6.35 mm |
