INA168 - 60V、高侧、电流输出电流分流监控器

INA168是TI德州仪器公司的一款电流分流模拟输出产品，INA168是60V、高侧、电流输出电流分流监控器，本站介绍了INA168的封装应用图解、特点和优点、功能等，并给出了与INA168相关的TI元器件型号供参考。

INA168 - 60V、高侧、电流输出电流分流监控器 - 电流分流模拟输出 - 电流感应放大器 - 德州仪器

产品特性

Complete Unipolar High-Side Current Measurement Circuit
Wide Supply and Common-Mode Range
INA138: 2.7 V to 36 V
INA168: 2.7 V to 60 V
Independent Supply and Input Common-Mode Voltages
Single Resistor Gain Set
Low Quiescent Current (25 µA Typical)
Wide Temperature Range: –40°C to +125°C
5-Pin SOT-23 Package

产品应用

Current Shunt Measurement:
- Automotive, Telephone, Computers
Portable and Battery-Backup Systems
Battery Chargers
Power Management
Cell Phones
Precision Current Source

产品说明

The INA138 and INA168 are high-side, unipolar, current shunt monitors. Wide input common-mode voltage range, low quiescent current, and tiny SOT-23 packaging enable use in a variety of applications.

Input common-mode and power-supply voltages are independent and can range from 2.7 V to 36 V for the INA138 and 2.7 V to 60 V for the INA168. Quiescent current is only 25 µA, which permits connecting the power supply to either side of the current measurement shunt with minimal error.

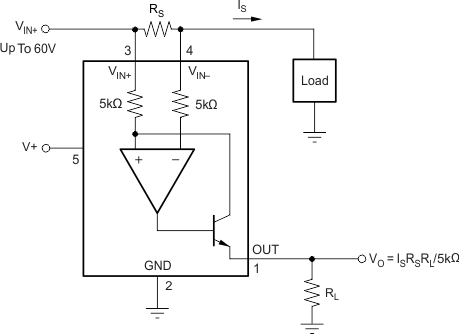

The device converts a differential input voltage to a current output. This current is converted back to a voltage with an external load resistor that sets any gain from 1 to over 100. Although designed for current shunt measurement, the circuit invites creative applications in measurement and level shifting.

Both the INA138 and INA168 are available in SOT23-5 and are specified for the –40°C to 125°C temperature range.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
INA138	SOT-23 (5)	18.00 mm × 18.00 mm
INA168	SOT-23 (5)	18.00 mm × 18.00 mm
