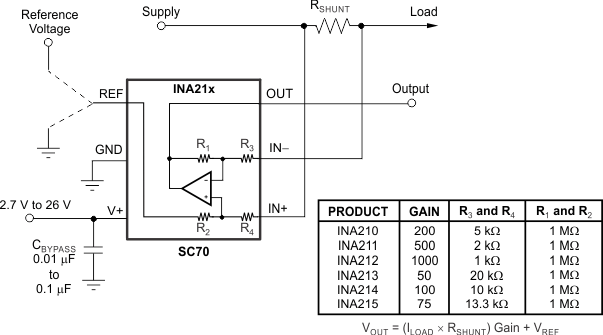

INA215 - 产品图解:
INA215-Voltage Output, High or Low Side Measurement, Bi-Directional Zero-Drift Series
INA215-电流分流模拟输出-电流感应放大器-放大器和线性
承诺原装正品
专营TI,真正优化您的供应链
TI产品 - INA215介绍
INA215 - Voltage Output, High or Low Side Measurement, Bi-Directional Zero-Drift Series

INA215是TI公司的一款电流分流模拟输出产品,INA215是Voltage Output, High or Low Side Measurement, Bi-Directional Zero-Drift Series,本页介绍了INA215的产品说明、应用、特性等,并给出了与INA215相关的TI元器件型号供参考。

INA215 - Voltage Output, High or Low Side Measurement, Bi-Directional Zero-Drift Series - 电流分流模拟输出 - 电流感应放大器 - TI公司(Texas Instruments,德州仪器)

产品特性
  • Wide Common-Mode Range: –0.3 V to 26 V
  • Offset Voltage: ±35 μV (Max, INA210) (Enables Shunt Drops of 10-mV Full-Scale)
  • Accuracy:
    • ±1% Gain Error (Max over Temperature)
    • 0.5-μV/°C Offset Drift (Max)
    • 10-ppm/°C Gain Drift (Max)
  • Choice of Gains:
    • INA210: 200 V/V
    • INA211: 500 V/V
    • INA212: 1000 V/V
    • INA213: 50 V/V
    • INA214: 100 V/V
    • INA215: 75 V/V
  • Quiescent Current: 100 μA (max)
  • SC70 Package: All Models
  • Thin UQFN Package: INA210, INA213, INA214
2 Applications
  • Notebook Computers
  • Cell Phones
  • Telecom Equipment
  • Power Management
  • Battery Chargers
  • Welding Equipment
产品说明

The INA210, INA211, INA212, INA213, INA214, and INA215 are voltage-output, current-shunt monitors that can sense drops across shunts at common-mode voltages from –0.3 V to 26 V, independent of the supply voltage. Five fixed gains are available: 50 V/V, 75 V/V, 100 V/V, 200 V/V, 500 V/V, or 1000 V/V. The low offset of the zero-drift architecture enables current sensing with maximum drops across the shunt as low as 10-mV full-scale.

These devices operate from a single 2.7-V to 26-V power supply, drawing a maximum of 100 μA of supply current. All versions are specified over the extended operating temperature range (–40°C to 125°C), and offered in an SC70 package. The INA210, INA213, and INA214 are also offered in a thin UQFN package.

产品器件信息
PART NUMBERPACKAGEBODY SIZE (NOM)
INA210SC70 (6)2.00 mm × 1.25 mm
UQFN (10)1.80 mm × 1.40 mm
INA211SC70 (6)2.00 mm × 1.25 mm
INA212SC70 (6)2.00 mm × 1.25 mm
INA213SC70 (6)2.00 mm × 1.25 mm
UQFN (10)1.80 mm × 1.40 mm
INA214SC70 (6)2.00 mm × 1.25 mm
UQFN (10)1.80 mm × 1.40 mm
INA215SC70 (6)2.00 mm × 1.25 mm
