ISO7420FCC - 具有故障安全输出低电平和噪声滤波器的低功耗 2/0 双通道数字隔离器

ISO7420FCC是TI德州仪器公司的一款无产品，ISO7420FCC是具有故障安全输出低电平和噪声滤波器的低功耗 2/0 双通道数字隔离器，本站介绍了ISO7420FCC的封装应用图解、特点和优点、功能等，并给出了与ISO7420FCC相关的TI元器件型号供参考。

ISO7420FCC - 具有故障安全输出低电平和噪声滤波器的低功耗 2/0 双通道数字隔离器 - 无 - 数字隔离器 - 德州仪器

产品特性

Signaling Rate: 50 Mbps (5-V Supplies)
Output is Low in Default Mode
Integrated Noise Filter on the Input Pins
Low Power Consumption: Typical ICC per Channel
- 1.8 mA at 1 Mbps, 3.9 mA at 25 Mbps (5-V Supplies)
- 1.4 mA at 1 Mbps, 2.6 mA at 25 Mbps (3.3-V Supplies)
Low Propagation Delay: 20 ns Typical (5-V Supplies)
Channel-to-Channel Output Skew: 2 ns Maximum
3.3-V and 5-V Level Translation
Wide TA Range Specified: –40°C to 125°C
60-KV/μs Transient Immunity, Typical (5-V Supplies)
Low Emissions
Isolation Barrier Life: > 25 Years
Operates from 2.7-V to 5.5-V Supply Levels
Narrow Body SOIC-8 Package
Safety and Regulatory Approvals
- 4242 VPK Isolation per DIN V VDE V 0884-10 (VDE V 0884-10):2006-12
- 2.5 KVRMS Isolation for 1 Minute per UL 1577
- CSA Component Acceptance Notice 5A, IEC 60950-1 and IEC 61010-1 End Equipment Standards
- GB4943.1-2011 CQC Certification

产品应用

Opto-Coupler Replacement in:
- Industrial FieldBus
  - ProfiBus
  - ModBus
  - DeviceNet™ Data Buses
- Servo Control Interface
- Motor Control
- Power Supplies
- Battery Packs

产品说明

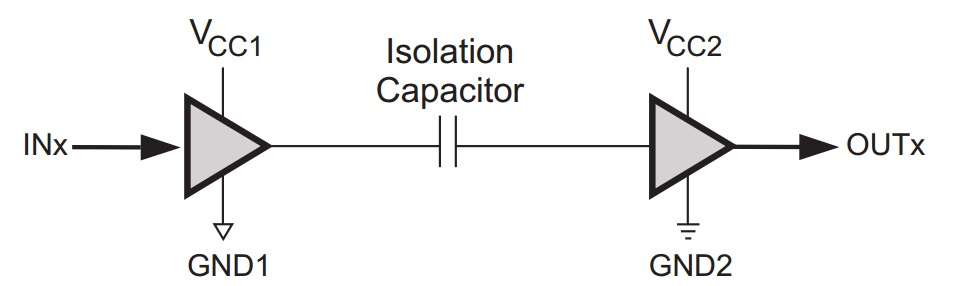

ISO7420FCC provides galvanic isolation up to 2500 VRMS for 1 minute per UL and 4242 VPK per VDE. This device has two isolated channels. Each channel has a logic input and output buffer separated by a silicon dioxide (SiO2) insulation barrier. Used in conjunction with isolated power supplies, this device prevents noise currents on a data bus or other circuit from entering the local ground and interfering with or damaging sensitive circuitry. The suffix F indicates low-output option in fail-safe conditions (see Table 2). This device has integrated noise filter for harsh environments where short noise pulses may be present at the device input pins.

ISO7420FCC has TTL input thresholds and operates from 2.7-V to 5.5-V supplies. All inputs are 5-V tolerant when supplied from a 2.7-V or 3.3-V supply.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
ISO7420FCC	SOIC (8)	4.90 mm × 3.91 mm
