LM3150 - SIMPLE SWITCHER? 控制器，42V 同步降压

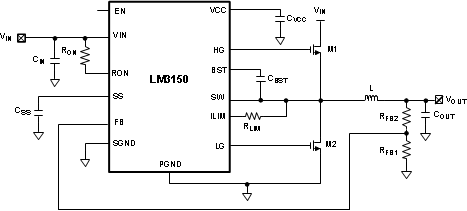

LM3150是TI德州仪器公司的一款控制器（外部开关）产品，LM3150是SIMPLE SWITCHER? 控制器，42V 同步降压，本站介绍了LM3150的封装应用图解、特点和优点、功能等，并给出了与LM3150相关的TI元器件型号供参考。

LM3150 - SIMPLE SWITCHER? 控制器，42V 同步降压 - 控制器（外部开关） - DC/DC开关稳压器 - 德州仪器

产品特性

PowerWise™ Step-Down Controller
6-V to 42-V Wide Input Voltage Range
Adjustable Output Voltage Down to 0.6 V
Programmable Switching Frequency up to 1 MHz
No Loop Compensation Required
Fully WEBENCH® Enabled
Low External Component Count
Constant On-Time (COT) Control
Ultra-Fast Transient Response
Stable With Low ESR Capacitors
Output Voltage PreBias Startup
Valley Current Limit
Programmable Soft-Start

产品应用

Telecom
Networking Equipment
Routers
Security Surveillance
Power Modules

产品说明

The LM3150 SIMPLESWITCHER® controller is an easy-to-use and simplified step-down power controller capable of providing up to 12 A of output current in a typical application. Operating with an input voltage range of 6 V to 42 V, the LM3150 controller features an adjustable output voltage down to 0.6 V. The switching frequency is adjustable up to 1 MHz and the synchronous architecture provides for highly efficient designs. The LM3150 controller employs a constant on-time (COT) architecture with a proprietary emulated ripple mode (ERM) control that allows for the use of low ESR output capacitors, which reduces overall solution size and output voltage ripple. The COT regulation architecture allows for fast transient response and requires no loop compensation, which reduces external component count and reduces design complexity.

Fault protection features such as thermal shutdown, undervoltage lockout, overvoltage protection, short-circuit protection, current limit, and output voltage prebias start-up allow for a reliable and robust solution.

The LM3150 concept provides for an easy-to-use complete design using a minimum number of external components and TI’s WEBENCH online design tool. WEBENCH provides design support for every step of the design process and includes features such as external component calculation with a new MOSFET selector, electrical simulation, thermal simulation, and Build-It boards for prototyping.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
LM3150	HTSSOP (14)	5.00 mm × 4.40 mm
