LM53600-Q1 - LM5360x-Q1 面向 1000mA 空间受限类应用的同步降压稳压器

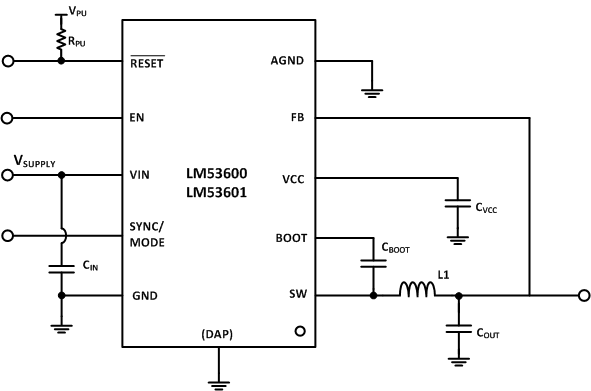

LM53600-Q1是TI德州仪器公司的一款转换器（集成开关）产品，LM53600-Q1是LM5360x-Q1 面向 1000mA 空间受限类应用的同步降压稳压器，本站介绍了LM53600-Q1的封装应用图解、特点和优点、功能等，并给出了与LM53600-Q1相关的TI元器件型号供参考。

LM53600-Q1 - LM5360x-Q1 面向 1000mA 空间受限类应用的同步降压稳压器 - 转换器（集成开关） - DC/DC开关稳压器 - 德州仪器

产品特性

Automotive Grade Product, AEC Grade 1 Qualified
10-lead 3 mm x 3 mm WSON Package
–40°C to 150°C junction Temperature Range
Peak Current Mode Control
2.1-MHz (±10%) Fixed Switching Frequency
Pin Selectable Forced PWM Mode
External Frequency Synchronization With Forced PWM Mode
Reset Output With Filter and Delayed Release
Automatic Light Load Mode for Improved Efficiency
Built-In Compensation, Soft-start, Current Limit, Thermal Shutdown, and UVLO
Spread Spectrum is Available as a Factory Option
Electrical Specifications
- 3.5-V to 36 V Input Voltage With Transients up to 42 V
- 1000-mA Maximum Load Current (LM53601-Q1)
- 650-mA Maximum load Current (LM53600-Q1)
- Output Voltage Options: 5 V, 3.3 V, and Adjustable
- ±2% Fixed Output Voltage Tolerance (Over Temperature)
- ±1.75% FB Voltage Tolerance for Adjustable Output Version (Over Temperature)
- 1.8-µA Current When Shutdown (Typical)
- 22-µA Quiescent Current at No Load With 3.3-V Output (Typical)

产品应用

Automotive Camera Applications
Automotive Infotainment

产品说明

The LM53600/01 synchronous buck regulator is optimized for automotive applications, providing either an adjustable output or an output voltage of 3.3 V or 5 V. The LM53600-Q1 device supports load currents up to 650 mA and the LM536001-Q1 supports load currents up to 1000 mA.

Advanced high speed circuitry allows the device to regulate from an 18-V input to a 3.3-V output at a fixed frequency of 2.1 MHz. Innovative architecture allows the device to regulate a 3.3-V output from an input voltage of only 3.8 V. Input voltage range up to 36 V, with transient tolerance up to 42 V, eases input surge protection design.

An open drain reset output, with filtering and delayed release, provides a true indication of system status. This feature negates the requirement for an additional supervisory component, saving cost and board space. Seamless transition between PWM and PFM modes, along with a quiescent current of only 22 µA, ensures high efficiency and superior transient response at all loads. Few external components are needed allowing the generation of compact PCB layout. The device characteristics are specified from a junction temperature range of –40°C up to 150°C.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
LM53600-Q1	WSON (10)	3.00mm x 3.00mm
LM53601-Q1	WSON (10)	3.00mm x 3.00mm
