LP38692 - 借助陶瓷输出电容实现稳定的 1A 低压降 CMOS 线性稳压器

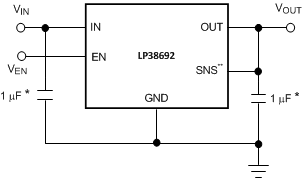

LP38692是TI德州仪器公司的一款单通道LDO产品，LP38692是借助陶瓷输出电容实现稳定的 1A 低压降 CMOS 线性稳压器，本站介绍了LP38692的封装应用图解、特点和优点、功能等，并给出了与LP38692相关的TI元器件型号供参考。

LP38692 - 借助陶瓷输出电容实现稳定的 1A 低压降 CMOS 线性稳压器 - 单通道LDO - 线性稳压器(LDO) - 德州仪器

产品特性

Wide Input Voltage Range (2.7 V to 10 V)
2.5% Output Accuracy (25°C)
Low Dropout Voltage: 450 mV at 1 A (typical, 5 VOUT)
Precision (Trimmed) Bandgap Reference
Ensured Specifications for –40°C to 125°C
1-µA Off-State Quiescent Current
Thermal Overload Protection
Foldback Current Limiting
3-Lead TO-252, 5-Lead SOT-223, and 6-Bump WSON Packages
Enable Pin (LP38692)
Ground Pin Current: 55 µA (typical) at Full Load
Precision Output Voltage: 2.5% (25°C) Accuracy

产品应用

Hard Disk Drives
Notebook Computers
Battery Powered Devices
Portable Instrumentation

产品说明

The LP38690 and LP38692 low-dropout CMOS linear regulators provide tight output tolerance (2.5% typical), extremely low dropout voltage (450 mV at a 1-A load current, VOUT = 5 V), and excellent AC performance utilizing ultra low ESR ceramic output capacitors.

The low thermal resistance of the WSON, SOT-223, and TO-252 packages allow the full operating current to be used even in high ambient temperature environments.

The use of a PMOS power transistor means that no DC base drive current is required to bias it allowing ground pin current to remain below 100 µA regardless of load current, input voltage, or operating temperature.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
LP38690	TO-252 (3)	6.58 mm x 6.10 mm
LP38690	WSON (6)	3.00 mm x 3.00 mm
LP38692	SOT-223 (5)	6.50 mm x 3.56 mm
LP38692	WSON (6)	3.00 mm x 3.00 mm
