REF5050是TI公司的一款串联电压基准产品，REF5050是低噪声、极低漂移、高精度电压基准，本页介绍了REF5050的产品说明、应用、特性等，并给出了与REF5050相关的TI元器件型号供参考。
REF5050 - 低噪声、极低漂移、高精度电压基准 - 串联电压基准 - 电压基准 - TI公司（Texas Instruments，德州仪器）
- Low Temperature Drift:
- High-Grade: 3 ppm/°C (Maximum)
- Standard-Grade: 8 ppm/°C (Maximum)
- High Accuracy:
- High-Grade: 0.05% (Maximum)
- Standard-Grade: 0.1% (Maximum)
- Low Noise: 3 μVPP/V
- Excellent Long-term Stability:
- 45 ppm/1000 hr (typ) after 1000 Hours
- High-Output Current: ±10 mA
- Temperature Range: –40°C to 125°C

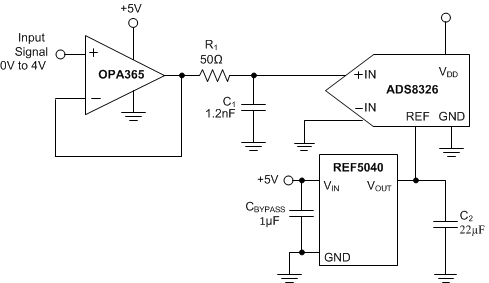

- 16-Bit Data Acquisition Systems
- ATE Equipment
- Industrial Process Controls
- Medical Instrumentation
- Pressure and Temperature Transmitters
- Seismic monitoring systems
The REF50xx is a family of low-noise, low-drift, very high precision voltage references. These references are capable of both sinking and sourcing current, and have excellent line and load regulation.
Excellent temperature drift (3 ppm/°C) and high accuracy (0.05%) are achieved using proprietary design techniques. These features, combined with very low noise, make the REF50xx family ideal for use in high-precision data acquisition systems.
Each reference voltage is available in both standard- and high-grade versions. They are offered in MSOP-8 and SO-8 packages, and are specified from –40°C to 125°C.
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| REF50xx | SOIC (8) | 4.90 mm × 3.91 mm |
| VSSOP (8) | 3.00 mm × 3.00 mm |
