SN65HVD1050 - 高速 EMC 优化 CAN 收发器

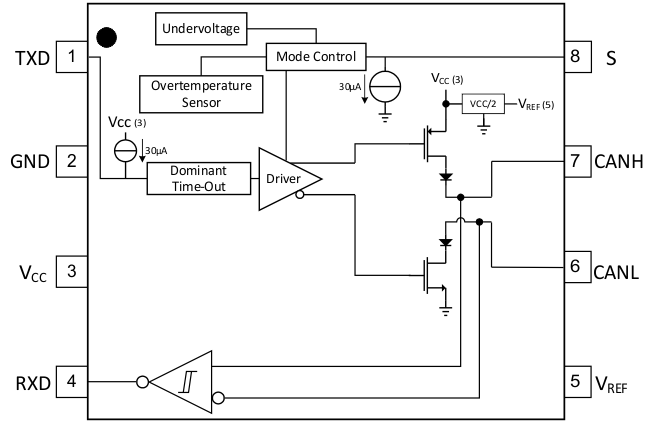

SN65HVD1050是TI德州仪器公司的一款无产品，SN65HVD1050是高速 EMC 优化 CAN 收发器，本站介绍了SN65HVD1050的封装应用图解、特点和优点、功能等，并给出了与SN65HVD1050相关的TI元器件型号供参考。

SN65HVD1050 - 高速 EMC 优化 CAN 收发器 - 无 - CAN收发器 - 德州仪器

产品特性

Improved Replacement for the TJA1050
High Electromagnetic Immunity (EMI)
Very Low Electromagnetic Emissions (EME)
Meets or Exceeds the Requirements of ISO 11898-2
CAN Bus-Fault Protection of –27 V to 40 V
Dominant Time-Out Function
Power-Up and Power-Down Glitch-Free CAN Bus Inputs and Outputs
- High Input Impedance With Low VCC
- Monotonic Outputs During Power Cycling

产品应用

Industrial Automation
- DeviceNet™ Data Buses (Vendor ID #806)
SAE J2284 High-Speed CAN Bus for Automotive Applications
SAE J1939 Standard Data Bus Interface
ISO 11783 Standard Data Bus Interface
NMEA 2000 Standard Data Bus Interface

产品说明

The SN65HVD1050 meets or exceeds the specifications of the ISO 11898 standard for use in applications employing a Controller Area Network (CAN).

As a CAN transceiver, this device provides differential transmit capability to the bus and differential receive capability to a CAN controller at signaling rates up to 1 megabit per second (Mbps) (1) The signaling rate of a line is the number of voltage transitions that are made per second expressed in the units bps (bits per second).

The SN65HVD1050 is designed for operation in especially harsh environments. As a result, the device features cross-wire, overvoltage and loss of ground protection from –27 V to 40 V, overtemperature shutdown, a –12-V to 12-V common-mode range, and will withstand voltage transients from –200 V to 200 V according to ISO 7637.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
SN65HVD1050	SOIC (8)	4.90 mm × 3.91 mm
