SN65HVD30-EP - SN65HVD30-EP, SN65HVD39-EP - 无 - RS-485收发器 - 德州仪器

产品特性

1/8 Unit-Load Option Available (up to 256 Nodes on the Bus)
Bus-Pin ESD Protection Exceeds 15 kV HBM
Optional Driver Output Transition Times for Signaling Rates (1) of 1 Mbps, 5 Mbps, and 25Mbps
Low-Current Standby Mode: <1 μA
Glitch-Free Power-Up and Power-Down Protection for Hot-Plugging Applications
5-V Tolerant Inputs
Bus Idle, Open, and Short-Circuit Fail Safe
Driver Current Limiting and Thermal Shutdown
Meet or Exceed the Requirements of ANSI TIA/EIA-485-A and RS-422 Compatible

(1) The signaling rate of a line is the number of voltage transitions that are made per second expressed in the units bps (bits per second).

产品应用

Utility Meters
DTE and DCE Interfaces
Industrial, Process, and Building Automation
Point-of-Sale (POS) Terminals and Networks
Controlled Baseline
One Assembly and Test Site
One Fabrication Site
Available in Military (–55°C/125°C) Temperature Range
Extended Product Life Cycle
Extended Product-Change Notification
Product Traceability

产品说明

The SN65HVD3x-EP devices are 3-state differential line drivers and differential-input line receivers that operate with 3-V power supply.

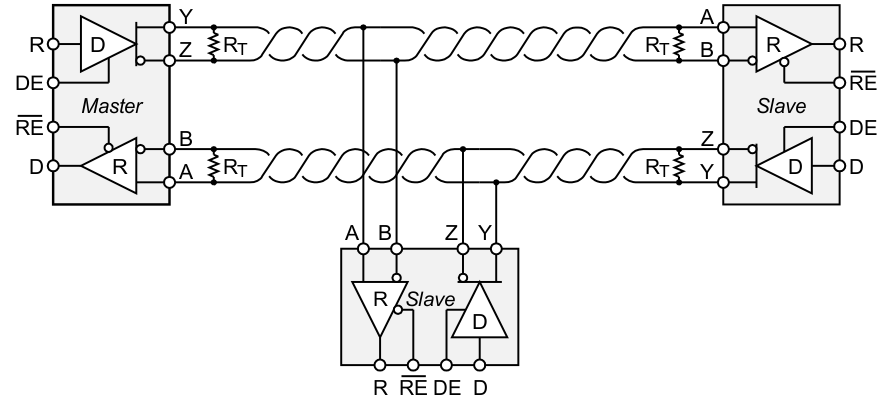

Each driver and receiver has separate input and output pins for full-duplex bus communication designs. They are designed for balanced transmission lines and interoperation with ANSI TIA/EIA-485A, TIA/EIA-422-B, ITU-T v.11, and ISO 8482:1993 standard-compliant devices.

The SN65HVD30, SN65HVD31, and SN65HVD32 are fully enabled with no external enabling pins.

The SN65HVD33, SN65HVD34, and SN65HVD35 have active-high driver enables and active-low receiver enables. A low (less than 1 μA) standby current can be achieved by disabling both the driver and receiver.

All devices are characterized for operation from –55°C to 125°C.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
SN65HVD3x-EP	SOIC (8)	4.90 mm x 3.91 mm
SN65HVD3x-EP	SOIC (14)	8.65 mm x 3.91 mm
