SN74AHCT573 - 具有三态输出的八路透明 D 类锁存器

SN74AHCT573是TI德州仪器公司的一款D类锁存器产品，SN74AHCT573是具有三态输出的八路透明 D 类锁存器，本站介绍了SN74AHCT573的封装应用图解、特点和优点、功能等，并给出了与SN74AHCT573相关的TI元器件型号供参考。

SN74AHCT573 - 具有三态输出的八路透明 D 类锁存器 - D类锁存器 - 触发器/锁存器/寄存器 - 德州仪器

产品特性

Inputs are TTL-Voltage Compatible
Latch-Up Performance Exceeds 250 mA Per JESD 17
On Products Compliant to MIL-PRF-38535, All Parameters Are Tested Unless Otherwise Noted. On All Other Products, Production Processing Does Not Necessarily Include Testing of All Parameters.
ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)

产品应用

Servers
PCs and Notebooks
Network Switches
Wearable Health and Fitness Devices
Telecom Infrastructures
Electronic Points of Sale

产品说明

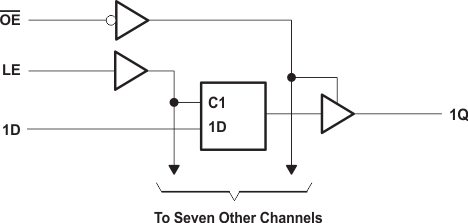

The SNx4AHCT573 devices are octal transparent D-type latches. When the latch-enable (LE) input is high, the Q outputs follow the data (D) inputs. When LE is low, the Q outputs are latched at the logic levels of the D inputs.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
SNx4AHCT573	SSOP (20)	7.20 mm × 5.30 mm
	TVSOP (20)	5.00 mm × 4.40 mm
	SOIC (20)	12.80 mm × 7.50 mm
	PDIP (20)	25.40 mm × 6.35 mm
	TSSOP (20)	6.50 mm × 4.40 mm
