SN74LV4052A-Q1技术文档下载：

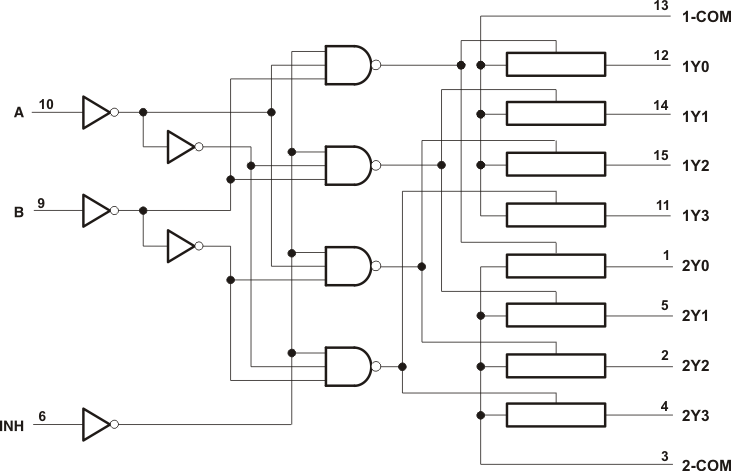

SN74LV4052A-Q1 - 产品图解：
SN74LV4052A-Q1 - 汽车类双路 4 通道模拟多路复用器/多路解复用器
SN74LV4052A-Q1是TI公司的一款模拟多路复用器/多路解复用器产品，SN74LV4052A-Q1是汽车类双路 4 通道模拟多路复用器/多路解复用器，本页介绍了SN74LV4052A-Q1的产品说明、应用、特性等，并给出了与SN74LV4052A-Q1相关的TI元器件型号供参考。
SN74LV4052A-Q1 - 汽车类双路 4 通道模拟多路复用器/多路解复用器 - 模拟多路复用器/多路解复用器 - 多路复用器/多路解复用器(Mux/Demux) - TI公司（Texas Instruments，德州仪器）
产品特性
- Qualified for Automotive Applications
- AEC-Q100 Qualified With the Following Results:
- Device Temperature Grade 1: –40°C to +125°C Ambient Operating Temperature Range
- Device HBM ESD Classification Level 2
- Device CDM ESD Classification Level C4B
- Supports Mixed-Mode Voltage Operation on All Ports
- Fast Switching
- High On-Off Output-Voltage Ratio
- Low Crosstalk Between Switches
- Extremely Low Input Current
产品应用
- Automotive:
- Signal Gating
- Chopping
- Modulation or Demodulation (Modem)
- Signal Multiplexing for Analog-to-Digital and Digital-to-Analog Conversion Systems
产品说明
These dual 4-channel CMOS analog multiplexers and demultiplexers are designed for 2-V to 5.5-V VCC operation.
The SN7LV4052A-Q1 devices handle both analog and digital signals. Each channel permits signals with amplitudes up to 5.5 V (peak).
Applications include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing for analog-to-digital and digital-to-analog conversion systems.
产品器件信息
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| SN74LV4052A-Q1 | TSSOP (16) | 5.00 mm × 4.40 mm |
| SOIC (16) | 9.90 mm × 3.91 mm |
