SN74LVC1G66-Q1 - 汽车类单路模拟开关

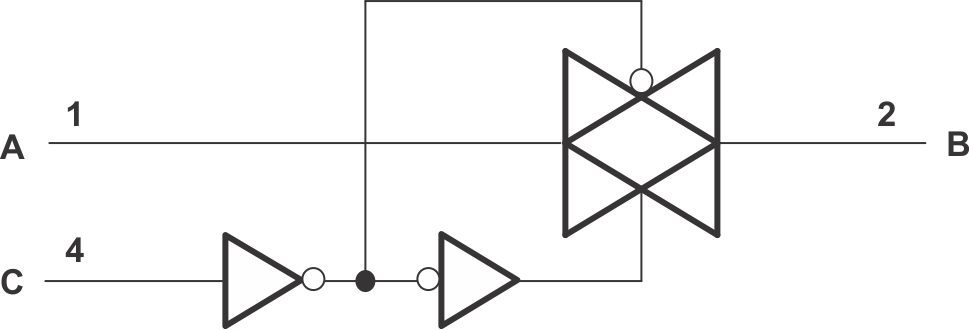

SN74LVC1G66-Q1是TI德州仪器公司的一款模拟开关产品，SN74LVC1G66-Q1是汽车类单路模拟开关，本站介绍了SN74LVC1G66-Q1的封装应用图解、特点和优点、功能等，并给出了与SN74LVC1G66-Q1相关的TI元器件型号供参考。

SN74LVC1G66-Q1 - 汽车类单路模拟开关 - 模拟开关 - 信号开关 - 德州仪器

产品特性

Qualified for Automotive Applications
AEC-Q100 Qualified With the Following Results:
- Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature Range
- Device HBM Classification Level H2
- Device CDM Classification Level C5
- Device MM Classification Level M3
1.65-V to 5.5-V VCC Operation
Inputs Accept Voltages to 5.5 V
Max tpd of 0.8 ns at 3.3 V
High On-Off Output Voltage Ratio
High Degree of Linearity
High Speed, Typically 0.5 ns (VCC = 3 V, CL = 50 pF)
Low ON-State Resistance, Typically ?5.5 Ω (VCC = 4.5 V)
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II

产品应用

Infotainment Systems
Wireless Devices
Audio and Video Signal Routing
Portable Computing
Wearable Devices
Signal Gating, Chopping, Modulation or Demodulation (Modem)
Signal Multiplexing for Analog-to-Digital and Digital-to-Analog Conversion Systems

产品说明

This single analog switch is designed for 1.65-V to 5.5-V VCC operation.

The SN74LVC1G66-Q1 device supports analog and digital signals. The device permits bidirectional transmission of signals with amplitudes of up to 5.5 V (peak).

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
SN74LVC1G66-Q1	SOT-23 (5)	2.90 mm × 1.60 mm
SN74LVC1G66-Q1	SC70 (5)	1.60 mm × 1.20 mm
