SN74LVC1G97 - 可配置多功能门

SN74LVC1G97是TI德州仪器公司的一款无产品，SN74LVC1G97是可配置多功能门，本站介绍了SN74LVC1G97的封装应用图解、特点和优点、功能等，并给出了与SN74LVC1G97相关的TI元器件型号供参考。

SN74LVC1G97 - 可配置多功能门 - 无 - 小尺寸逻辑器件 - 德州仪器

产品特性

Available in the Texas Instruments NanoFree™ Package
Supports 5-V VCC Operation
Inputs Accept Voltages to 5.5 V
Supports Down Translation to VCC
Max tpd of 6.3 ns at 3.3 V
Low Power Consumption, 10-µA Max ICC
±24-mA Output Drive at 3.3 V
Ioff Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22
- 2000-V Human Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
Choose From Nine Specific Logic Functions

产品应用

Barcode Scanners
Cable Solutions
E-Books
Embedded PCs
Field Transmitter: Temperature or Pressure Sensors
Fingerprint Biometrics
HVAC: Heating, Ventilating, and Air Conditioning
Network-Attached Storage (NAS)
Server Motherboards and PSUs
Software Defined Radios (SDR)
TVs: High Definition (HDTV), LCD, and Digital
Video Communications Systems
Wireless Data Access Cards, Headsets, Keyboard, Mouse, and LAN Cards

产品说明

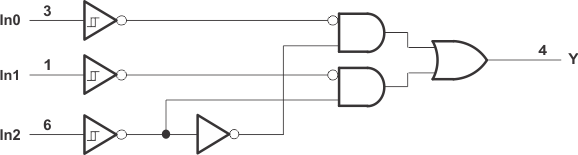

The SN74LVC1G97 device features configurable multiple functions. The output state is determined by eight patterns of 3-bit input. The user can choose the logic functions MUX, AND, OR, NAND, NOR, inverter, and noninverter. All inputs can be connected to VCC or GND.

This configurable multiple-function gate is designed for 1.65-V to 5.5-V VCC operation.

This device functions as an independent gate, but because of Schmitt action, it may have different input threshold levels for positive-going (VT+) and negative-going (VT–) signals.

NanoFree package technology is a major break-through in IC packaging concepts, using the die as the package.

This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
SN74LVC1G97DBV	SOT-23 (6)	2.9 mm × 1.6 mm
SN74LVC1G97DCK	SC70 (6)	2.0 mm × 1.25 mm
SN74LVC1G97DRL	SOT (6)	1.6 mm × 1.2 mm
SN74LVC1G97DSF		1.45 mm × 1.0 mm
SN74LVC1G97DRY		1.0 mm × 1.0 mm
SN74LVC1G97YZP	DSBGA (6)	1.41 mm × 0.91 mm
