SRC4192 - 高端采样速率转换器

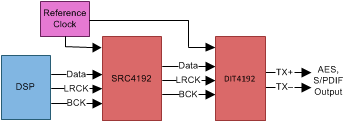

SRC4192是TI德州仪器公司的一款采样速率转换器产品，SRC4192是高端采样速率转换器，本站介绍了SRC4192的封装应用图解、特点和优点、功能等，并给出了与SRC4192相关的TI元器件型号供参考。

SRC4192 - 高端采样速率转换器 - 采样速率转换器 - 数字音频接口 - 德州仪器

产品特性

Automatic Sensing of the Input-to-Output Sampling Ratio
Wide Input-to-Output Sampling Range: 16:1 to 1:16
Supports Input and Output Sampling Rates Up to 212 kHz
Dynamic Range: 144 dB (–60-dbFS Input, BW = 20 Hz to fS/2, A-Weighted)
THD+N: –140 dB (0-dbFS Input, BW = 20 Hz to fS/2)
Attenuates Sampling and Reference Clock Jitter
High-Performance, Linear-Phase Digital Filtering with Stop Band Attenuation Greater than 140 dB
Flexible Audio Serial Ports:
- Master or Slave-Mode Operation
- Supports I2S, Left-Justified, Right-Justified, and TDM Data Formats
- Supports 16, 18, 20, or 24-Bit Audio Data
- TDM Mode Allows Daisy-Chaining of up to Eight Devices
Supports 24-, 20-, 18-, or 16-Bit Input and Output Data: All Output Data is Dithered from the Internal 28-Bit Data Path
Low Group Delay Option for Interpolation Filter
Direct Downsampling Option for Decimation Filter (SRC4193 Only)
SPI Port Provides Access to Internal Control Registers (SRC4193 Only)
Soft Mute Function
Bypass Mode
Programmable Digital Output Attenuation (SRC4193 Only); 256 Steps: 0 dB to –127.5 dB, 0.5-dB/step
Power Down Mode
Operates From a Single 3.3-V Power Supply
Small 28-Pin SSOP Package
Pin Compatible with the AD1896 (SRC4192 Only)

产品应用

Digital Mixing Consoles
Digital Audio Workstations
Audio Distribution Systems
Broadcast Studio Equipment
High-End A/V Receivers
General Digital Audio Processing

产品说明

The SRC4192 and SRC4193 devices are asynchronous, sample-rate converters designed for professional and broadcast audio applications. The SRC4192 and SRC4193 devices combine a wide input-to-output sampling ratio with outstanding dynamic range and ultra-low distortion. Input and output serial ports support standard audio formats, as well as a Time Division Multiplexed (TDM) mode. Flexible audio interfaces allow the SRC4192 and SRC4193 devices to connect to a wide range of audio data converters, digital audio receivers and transmitters, and digital signal processors.

The SRC4192 device is a standalone, pin-programmed device, with control pins for mode, data format, mute, bypass, and low group-delay functions. The SRC4193 device is a software-controlled device featuring a serial peripheral interface (SPI) port, which is utilized to program all functions through the internal control registers.

The SRC4192 and SRC4193 devices can operate from a single 3.3-V power supply. A separate digital I/O supply (VIO) operates over the 1.65-V to 3.6-V supply range, allowing greater flexibility when interfacing to current and future generation signal processors and logic devices. Both devices are available in a 28-pin SSOP package.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
SRC4192	SSOP (28)	5.30 mm × 10.20 mm
SRC4193	SSOP (28)	5.30 mm × 10.20 mm
