TL2575-05 - 1A 简单降压开关稳压器

TL2575-05是TI德州仪器公司的一款转换器（集成开关）产品，TL2575-05是1A 简单降压开关稳压器，本站介绍了TL2575-05的封装应用图解、特点和优点、功能等，并给出了与TL2575-05相关的TI元器件型号供参考。

TL2575-05 - 1A 简单降压开关稳压器 - 转换器（集成开关） - DC/DC开关稳压器 - 德州仪器

产品特性

Fixed 3.3-V, 5-V, 12-V, and 15-V Options with ±5% Regulation (Max) Over Line, Load, and Temperature Conditions
Adjustable Option With a Range of 1.23V to 37V (57V for HV Version) and ±4% Regulation (Max) Over Line, Load, and Temperature Conditions
Specified 1-A Output Current
Wide Input Voltage Range
- 4.75 V to 40V (60V for HV Version)
Requires Only Four External Components (Fixed Versions) and Uses Readily Available Standard Inductors
52-kHz (Typ) Fixed-Frequency Internal Oscillator
TTL Shutdown Capability With 50-μA (Typ) Standby Current
High Efficiency
- As High as 88% (Typ)
Thermal Shutdown and Current-Limit Protection with Cycle-by-Cycle Current Limiting

产品应用

Simple High-Efficiency Step-Down (Buck) Regulators
Pre-Regulators for Linear Regulators
On-Card Switching Regulators
Positive-to-Negative Converters (Buck-Boost)

产品说明

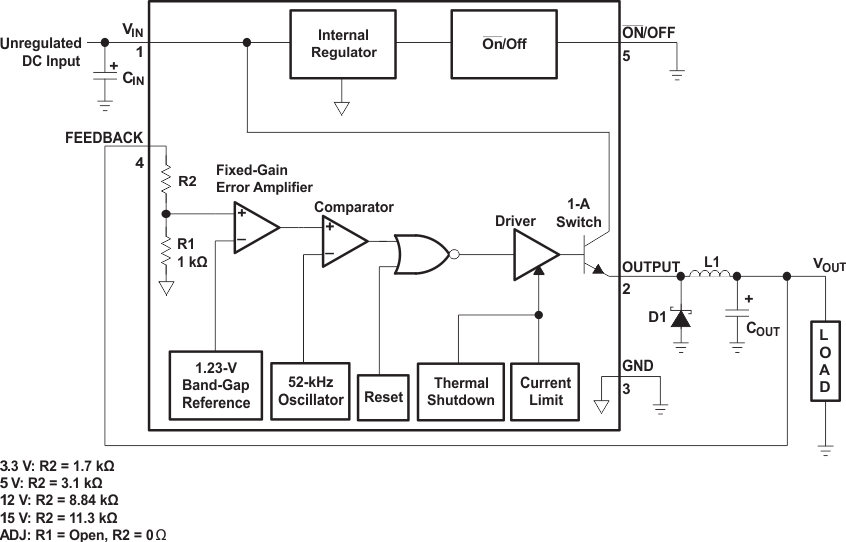

The TL2575 and TL2575HV devices provide all the active functions needed for a step-down (buck) switching regulator in an integrated circuit. They require four to six external components for operation. They accept a wide input-voltage range of up to 60V (TL2575-HV) and are available in fixed output voltages of 3.3 V, 5 V, 12 V, 15 V, or an adjustable-output version. The TL2575 and TL2575HV devices have an integrated switch capable of delivering 1 A of load current, with excellent line and load regulation. The device also offers internal frequency compensation, a fixed-frequency oscillator, cycle-by-cycle current limiting, and thermal shutdown. In addition, a manual shutdown is available via an external ON/OFF pin.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
TL2575, TL2575HV	PDIP (16)	19.31 mm x 6.35 mm
	TO-263 (5)	10.16 mm x 8.93 mm
	TO-220 (5)	10.16 mm x 8.82 mm
