TLE4275-Q1 - 汽车类 5V 低压降稳压器

TLE4275-Q1是TI德州仪器公司的一款单通道LDO产品，TLE4275-Q1是汽车类 5V 低压降稳压器，本站介绍了TLE4275-Q1的封装应用图解、特点和优点、功能等，并给出了与TLE4275-Q1相关的TI元器件型号供参考。

TLE4275-Q1 - 汽车类 5V 低压降稳压器 - 单通道LDO - 线性稳压器(LDO) - 德州仪器

产品特性

Qualified for Automotive Applications
Output Voltage 5 V ± 2%
Very Low Current Consumption
Power-On and Undervoltage Reset
Reset Low-Level Output Voltage < 1 V
Very Low Dropout Voltage
Short-Circuit Proof
Reverse-Polarity Proof

产品应用

Qualified for Automotive Applications
Cluster
Body Control Modules
Heating Ventilation and Air Conditioning (HVAC)

产品说明

The TLE4275-Q1 is a monolithic integrated low-dropout voltage regulator offered in a 5-pin TO package. The device regulates an input voltage up to 45 V to VOUT = 5 V (typical). The device can drive loads up to 450 mA and is short-circuit proof. At overtemperature, the incorporated temperature protection turns off the TLE4275-Q1. The device generates a reset signal for an output voltage, VOUT,rt, of 4.65 V (typical). By the use of an external delay capacitor, one can program the reset delay time.

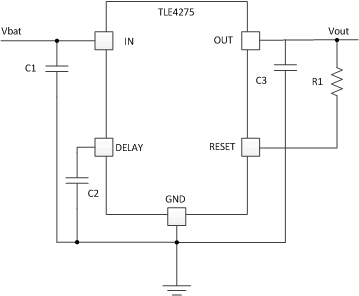

The input capacitor, CIN, compensates for line fluctuation. Using a resistor of approximately 1 Ω in series with CIN dampens the oscillation of input inductance and input capacitance. The output capacitor, COUT, stabilizes the regulation circuit. The specification for stability is at COUT≥22μF and ESR≤5Ω, within the operating temperature range. Stability for electrolytic capacitors specifically is at COUT ≥ 68 µF within the operating temperature range. See the application report on low-temperature stability, SLVA501, for further details.

The control amplifier compares a reference voltage to a voltage that is proportional to the output voltage and drives the base of the series transistor through a buffer. Saturation control as a function of the load current prevents any oversaturation of the power element. The device also incorporates a number of internal circuits for protection against: overload, overtemperature, and reverse polarity.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
TLE4275-Q1	DDPAK/TO-263 (5)	10.16 mm × 8.42 mm
	TO-252 (5)	6.10 mm × 6.60 mm
	HTSSOP (20)	6.50 mm × 4.40 mm
