TLV320AIC3104是TI公司的一款音频编解码器产品，TLV320AIC3104是具有 6 输入、6 输出、耳机放大器和增强数字效果的低功耗立体声编解码器，本页介绍了TLV320AIC3104的产品说明、应用、特性等，并给出了与TLV320AIC3104相关的TI元器件型号供参考。
TLV320AIC3104 - 具有 6 输入、6 输出、耳机放大器和增强数字效果的低功耗立体声编解码器 - 音频编解码器 - 音频转换器 - TI公司（Texas Instruments，德州仪器）
- Stereo Audio DAC
- 102-dBA Signal-to-Noise Ratio
- 16-, 20-, 24-, or 32-Bit Data
- Supports Sample Rates From 8 kHz to 96 kHz
- 3D, Bass, Treble, EQ, or De-Emphasis Effects
- Flexible Power Saving Modes and Performance are Available
- Stereo Audio ADC
- 92-dBA Signal-to-Noise Ratio
- Supports Sample Rates From 8 kHz to 96 kHz
- Digital Signal Processing and Noise Filtering Available During Record
- Six Audio Input Pins
- One Stereo Pair of Single-Ended Inputs
- One Stereo Pair of Fully Differential Inputs
- Six Audio Output Drivers
- Stereo Fully Differential or Single-Ended Headphone Drivers
- Fully Differential Stereo Line Outputs
- Low Power: 14-mW Stereo 48-kHz Playback With 3.3-V Analog Supply
- Ultra-Low-Power Mode With Passive Analog Bypass
- Programmable I/O Analog Gains
- Automatic Gain Control (AGC) for Record
- Programmable Microphone Bias Level
- Programmable PLL for Flexible Clock Generation
- I2C Control Bus
- Audio Serial Data Bus Supports I2S, Left- and Right-Justified, DSP, and TDM Modes
- Extensive Modular Power Control
- Power Supplies:
- Analog: 2.7 V to 3.6 V.
- Digital Core: 1.525 V to 1.95 V
- Digital I/O: 1.1 V to 3.6 V
- Package: 5-mm × 5-mm 32-Pin QFN
- Digital Cameras
- Smart Cellular Phones
- PDAs
- Portable Computing
- Communication
- Entertainment Applications

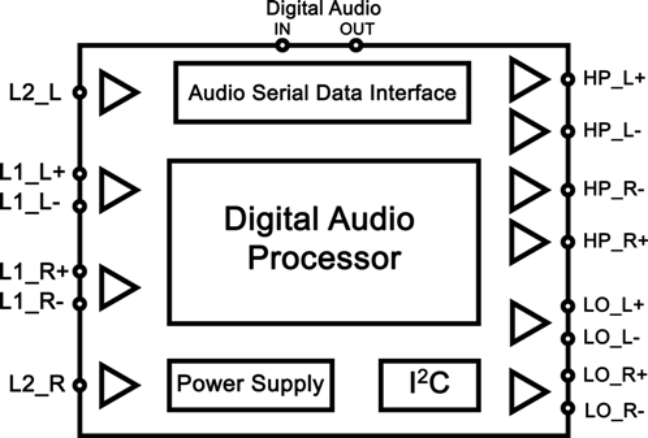

The TLV320AIC3104 is a low-power stereo audio codec with stereo headphone amplifier, as well as multiple inputs and outputs that are programmable in single-ended or fully differential configurations. The device includes extensive register-based power control is included, thus enabling stereo 48-kHz DAC playback as low as 14 mW from a 3.3-V analog supply, making the device ideal for portable battery-powered audio and telephony applications.
The record path of the TLV320AIC3104 contains integrated microphone bias, digitally controlled stereo microphone preamplifier, and automatic gain control (AGC), with mix/mux capability among the multiple analog inputs. During record, programmable filters can remove audible noise that can occur during optical zooming in digital cameras. The playback path includes mix/mux capability from the stereo DAC and selected inputs, through programmable volume controls, to the various outputs.
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| TLV320AIC3104 | VQFN (32) | 5.00 mm × 5.00 mm |
