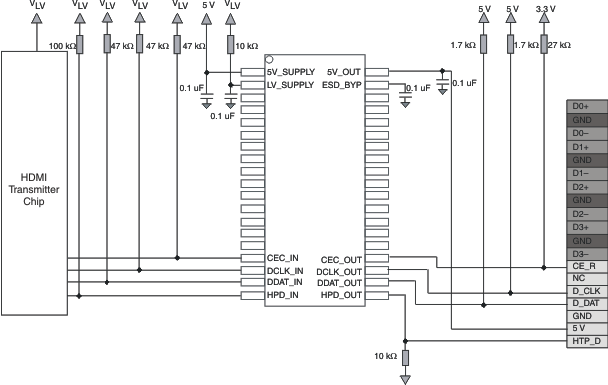

TPD12S521 - 产品图解：
TPD12S521-HDMI 发送器端口保护和接口设备
TPD12S521-集成ESD保护-ESD保护二极管-接口
TI芯片：
承诺原装正品
专营TI德州仪器，真正优化您的供应链
TI产品 - TPD12S521介绍

TPD12S521 - HDMI 发送器端口保护和接口设备

TPD12S521是TI德州仪器公司的一款集成ESD保护产品，TPD12S521是HDMI 发送器端口保护和接口设备，本站介绍了TPD12S521的封装应用图解、特点和优点、功能等，并给出了与TPD12S521相关的TI元器件型号供参考。

TPD12S521 - HDMI 发送器端口保护和接口设备 - 集成ESD保护 - ESD保护二极管 - 德州仪器

产品特性
  • IEC 61000-4-2 Level 4 ESD Protection
    • ±8-kV Contact Discharge on External Lines
  • Single-Chip ESD Solution for HDMI Driver
  • On-Chip Current Regulator with 55-mA Current Output
  • Supports All HDMI 1.3 and HDMI 1.4b Data Rates (–3 dB Frequency > 3 GHz)
  • 0.8-pF Capacitance for the High Speed TMDS Lines
  • 0.05-pF Matching Capacitance Between the Differential Signal Pair
  • 38-Pin TSSOP Provides Seamless Layout Option with HDMI Connector
  • Backdrive Protection
    • TMDS_D[2:0]+/–
    • TMDS_CK+/–
    • CE_REMOTE_OUT
    • DDC_DAT_OUT
    • DDC_CLK_OUT
    • HOTPLUG_DET_OUT
  • Lead-Free Package
产品应用
  • PCs
  • Consumer Electronics
  • Set-Top Boxes
  • DVD Players
产品说明

The TPD12S521 is a single-chip electro-static discharge (ESD) circuit protection device for the high-definition multimedia interface (HDMI) transmitter port. While providing ESD protection with transient voltage suppression (TVS) diodes, the TVS protection adds little or no additional glitch in the high-speed differential signals. The high-speed transition minimized differential signaling (TMDS) ESD protection lines add only 0.8-pF capacitance.

The low-speed control lines offer voltage-level shifting to eliminate the need for an external voltage level-shifter IC. The control line TVS diodes add 3.5-pF capacitance to the control lines. The 38-pin DBT package offers a seamless layout routing option to eliminate the routing glitch for the differential signal pairs. The DBT package pitch (0.5 mm) matches with the HDMI connector pitch. In addition, the pin mapping follows the same order as the HDMI connector pin mapping. The TPD12S521 provides an on-chip current limiting switch with output ratings of 55 mA at pin 38. This enables HDMI receiver detection even when the receiver device is powered off.

产品器件信息
PART NUMBERPACKAGEBODY SIZE (NOM)
TPD12S521TSSOP (38)6.40 mm × 9.70 mm
