TPD2EUSB30A - 用于高速低电压接口的双通道 ESD/ 电涌解决方案

TPD2EUSB30A是TI德州仪器公司的一款高性能TVS二极管产品，TPD2EUSB30A是用于高速低电压接口的双通道 ESD/ 电涌解决方案，本站介绍了TPD2EUSB30A的封装应用图解、特点和优点、功能等，并给出了与TPD2EUSB30A相关的TI元器件型号供参考。

TPD2EUSB30A - 用于高速低电压接口的双通道 ESD/ 电涌解决方案 - 高性能TVS二极管 - ESD保护二极管 - 德州仪器

产品特性

Supports USB 3.0 Data Rates (5 Gbps)
IEC 61000-4-2 ESD Protection (Level 4 Contact)
IEC 61000-4-5 Surge Protection
- 5 A (8/20 µs)
Low Capacitance
- DRT: 0.7 pF (Typ)
- DQA: 0.8 pF (Typ)
Dynamic Resistance: 0.6 Ω (Typ)
Space-Saving DRT, DQA Packages
Flow-Through Pin Mapping

产品应用

Notebooks
Set-Top Boxes
DVD Players
Media Players
Portable Computers

产品说明

The TPD2EUSB30, TPD2EUSB30A, and TPD4EUSB30 are 2 and 4 channel Transient Voltage Suppressor (TVS) based Electrostatic Discharge (ESD) protection diode arrays. The TPDxEUSB30/A devices are rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Contact). These devices also offer 5 A (8/20 μs) peak pulse current ratings per IEC 61000-4-5 (Surge) specification.

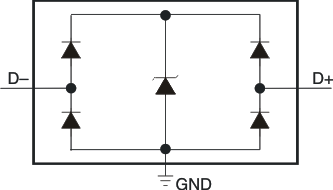

The TPD2EUSB30A offers low 4.5-V DC break-down voltage. The low capacitance, low break-down voltage, and low dynamic resistance make the TPD2EUSB30A a superior protection device for high-speed differential IOs.

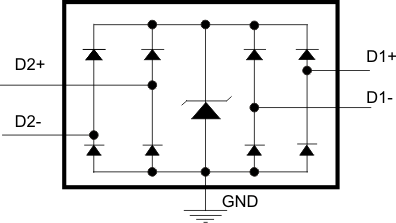

The TPD2EUSB30 and TPD2EUSB30A are offered in space saving DRT (1 mm × 1 mm) package. The TPD4EUSB30 is offered in space saving DQA (2.5 mm × 1.0 mm) package.

Device Information(1)

PART NUMBER	PACKAGE	BODY SIZE (NOM)
TPD2EUSB30	SOT (3)	1.00 mm x 0.80 mm
TPD2EUSB30A	SOT (3)	1.00 mm x 0.80 mm
TPD4EUSB30	USON (10)	2.50 mm x 1.00 mm
