TPD8F003 - 用于显示接口的 8 通道 EMI 滤波器
TPD8F003是TI公司的一款集成ESD保护产品，TPD8F003是用于显示接口的 8 通道 EMI 滤波器，本页介绍了TPD8F003的产品说明、应用、特性等，并给出了与TPD8F003相关的TI元器件型号供参考。
TPD8F003 - 用于显示接口的 8 通道 EMI 滤波器 - 集成ESD保护 - ESD保护二极管 - TI公司（Texas Instruments，德州仪器）
产品特性
- Four-, Six-, and Eight-Channel EMI Filtering for Data Ports
- –3 dB Bandwidth of 200 MHz
- Greater than 25 dB attenuation at 1 GHz
- IEC 61000-4-2 Level 4 ESD Protection
- ±12-kV Contact Discharge
- ±20-kV Air Gap Discharge

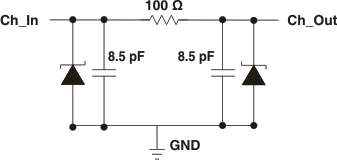

- Pi-Style (C-R-C) Filter Configuration (R = 100 Ω, CTOTAL = 17 pF)
- Low 10-nA Leakage Current
- Easy Flow-Through Routing
产品应用
- Display Interfaces
- Cell Phones
- Tablets
- SVGA Video Connections
- Memory Interfaces
产品说明
The TPDxF003 family is a series of highly integrated devices designed to provide Electromagnetic Interference (EMI) filtering in all systems subjected to electromagnetic interference. These filters also provide a Transient Voltage Suppressor (TVS) diode circuit for Electrostatic Discharge (ESD) protection which prevents damage to the application when subjected to ESD stress far exceeding IEC 61000-4-2 (Level 4).
The TPDxF003 family is specified for –40°C to 85°C operation. These filters are also packaged in space-saving 0.4-mm pitch DQD packages.
产品器件信息
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| TPD4F003 | WSON (8) | 1.70 mm x 1.35 mm |
| TPD6F003 | WSON (12) | 2.50 mm x 1.35 mm |
| TPD8F003 | WSON (16) | 3.30 mm x 1.35 mm |
