TPIC1021 - 汽车类 LIN 物理接口

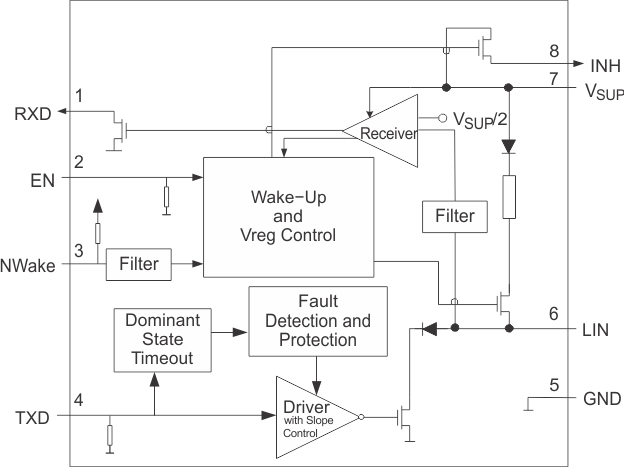

TPIC1021是TI德州仪器公司的一款无产品，TPIC1021是汽车类 LIN 物理接口，本站介绍了TPIC1021的封装应用图解、特点和优点、功能等，并给出了与TPIC1021相关的TI元器件型号供参考。

TPIC1021 - 汽车类 LIN 物理接口 - 无 - LIN收发器 - 德州仪器

产品特性

LIN Physical Layer Specification Revision 2.0 compliant. Conforms to SAEJ2602 Recommended Practice for LIN
LIN Bus Speed up to 20 kbps
ESD Protection to 12 kV (Human Body Model) on LIN Pin
LIN Pin Handles Voltage from –40 V to 40 V
Survives Transient Damage in Automotive Environment (ISO 7637)
Operation with Supply from 7-V to 27-V DC
Two Operation Modes: Normal and Low-Power (Sleep) Mode
Low Current Consumption in Low Power Mode
Wake-Up Available from LIN Bus, Wake-Up Input (External Switch) or Host MCU
Interfaces to MCU with 5-V or 3.3-V I/O Pins
Dominant State Timeout Protection on TXD Pin
Wake-Up Request on RXD Pin
Control of External Voltage Regulator (INH Pin)
Integrated Pull-Up Resistor and Series Diode for LIN Slave Applications
Low EME (Electromagnetic Emissions), High EMI (Electromagnetic Immunity)
Bus Terminal Short-Circuit Protected for Short to Battery or Short to Ground
Thermally Protected
Ground Disconnection Fail-Safe at System Level
Ground Shift Operation at System Level
Unpowered Node Does Not Disturb the Network

产品应用

Industrial Sensing
White Goods Distributed Control

产品说明

The TPIC1021 is the LIN (Local Interconnect Network) physical interface, which integrates the serial transceiver with wake up and protection features. The LIN bus is a single wire, bi-directional bus typically used for low-speed in-vehicle networks using baud rates between 2.4 kbps and 20 kbps.

The LIN bus has two logical values: the dominant state (voltage near ground) represents a logic 0 and the recessive state (voltage near battery) and represents logic 1.

In the recessive state the LIN bus is pulled high by the TPIC1021’s internal pull-up resistor (30 kΩ) and series diode, so no external pullup components are required for slave applications. Master applications require an external pullup resistor (1 kΩ) plus a series diode.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
TPIC1021	SOIC (8)	4.90 mm × 3.91 mm
