TPS43331-Q1是TI公司的一款无产品，TPS43331-Q1是汽车类双路开关和线性稳压器多轨电源，本页介绍了TPS43331-Q1的产品说明、应用、特性等，并给出了与TPS43331-Q1相关的TI元器件型号供参考。
TPS43331-Q1 - 汽车类双路开关和线性稳压器多轨电源 - 无 - 电源管理多通道IC(PMIC)解决方案 - TI公司（Texas Instruments，德州仪器）
- Input Operating Range 5 V to 30 V (VBAT), with Transients Up to 40 V
- Two, Adjustable Output Voltage, Step-Down Switching Voltage Regulators
- External Clock Input
- Soft-Start Control for Step-Down Regulators
- Programmable, Linear Regulator (VSTBY), Low Quiescent Current (65 µA typ)
- Programmable, Linear Regulator (VLR)
- Overvoltage Detection and Shutdown
- Protected, High-Side Drive Ouput (HSD)
- Power-On Reset for Standby Regulator (VSTBY)
- Serial Communication, I2C Interface
- Low Voltage Warning Detection With Programmable Input Threshold (LVWIN, VBATW)
- Enable Feature, Controls VBUCK 1
- Programmable Power Good Delay Time (PGDLY) for VSTBY
- Current-Limit and Independent Thermal Detection and Shutdown Protection on All Regulators and High-Side Driver Output
- Operating Junction Temperature Range: –40°C to 150°C
- Thermally Enhanced 38-Pin DAP PowerPAD™ Package
- Qualified for Automotive Applications
- Power Supply for Microcontrollers and DSPs

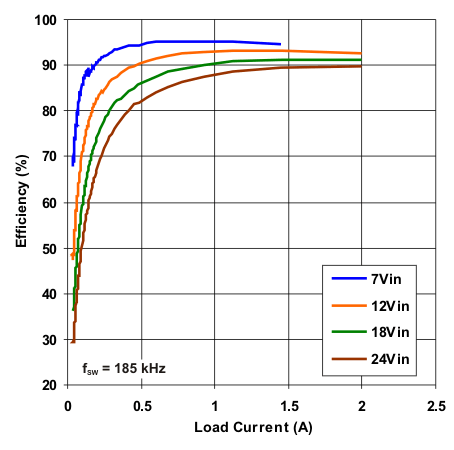

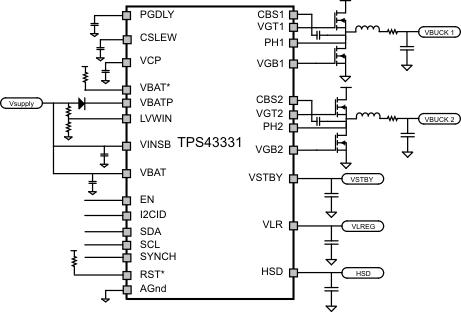

The TPS43331-Q1 is a multi-rail output voltage regulator, with two synchronous switch mode controllers and two linear regulators. In addition, there is a reverse protected high side switch and voltage supervisor for monitoring the standby regulator and input voltage. The regulator outputs and high side switch are controlled either by discrete inputs for certain outputs and serial interface using the I2C configuration for outputs not controlled by discrete inputs.
The standby linear regulator (VSTBY) is high voltage tolerant and can be connected directly to the vehicle battery, the quiescent current is typically 65 µA to maintain a regulated output with light loads.
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| TPS43331-Q1 | HTSSOP (38) | 12.50 mm × 6.10 mm |
