TPS62152-Q1 - 采用 3x3 QFN 封装的汽车类 3-17V 1A 降压转换器

TPS62152-Q1是TI德州仪器公司的一款转换器（集成开关）产品，TPS62152-Q1是采用 3x3 QFN 封装的汽车类 3-17V 1A 降压转换器，本站介绍了TPS62152-Q1的封装应用图解、特点和优点、功能等，并给出了与TPS62152-Q1相关的TI元器件型号供参考。

TPS62152-Q1 - 采用 3x3 QFN 封装的汽车类 3-17V 1A 降压转换器 - 转换器（集成开关） - DC/DC开关稳压器 - 德州仪器

产品特性

Qualified for Automotive Applications
AEC-Q100 Qualified With the Following Results:
- Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature Range
- Device HBM ESD Classification Level H2
- Device CDM ESD Classification Level C4B
DCS-Control Topology
Input Voltage Range: 4 V to 17 V
Up to 1-A Output Current
Fixed Output Voltage: 3.3 V
Programmable Soft Start and Tracking
Seamless Power-Save Mode Transition
Quiescent Current of 17 µA (Typ.)
Selectable Operating Frequency
Power-Good Output
100% Duty-Cycle Mode
Short-Circuit Protection
Overtemperature Protection
Available in a 3-mm × 3-mm, VQFN-16 Package

产品应用

Automotive Infotainment and Cluster
- Instrument Cluster
- Center Stack
- Head Unit
- Rear-Seat Entertainment
Advanced Driver-Assistance System (ADAS)
- Surround View
- Rear-View Camera
- Front Camera

产品说明

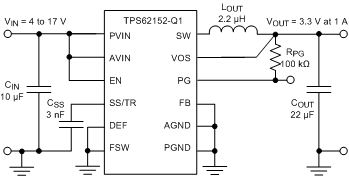

The TPS62152-Q1 device is an easy-to-use synchronous step-down dc-dc converter optimized for applications with high power density and features a fixed 3.3-V output with a current capability of up to 1 A. A high switching frequency of 2.5 MHz (typical) allows the use of small inductors and provides fast transient response as well as high output-voltage accuracy by use of the DCS-Control topology.

With a wide operating input voltage range of 4 V to 17 V, the device is ideally suited for systems powered from either a Li-Ion or other batteries as well as from 12-V intermediate power rails.

The soft-start pin controls the output voltage start-up ramp, which allows operation either as a standalone power supply or in tracking configurations. Power sequencing is also possible by configuring the enable and open-drain power-good pins.

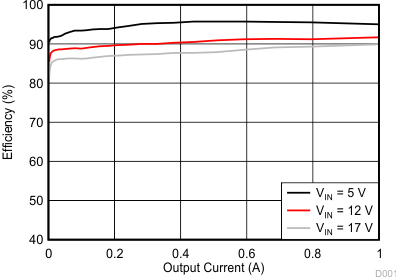

In power-save mode, the device draws quiescent current of about 17 μA from VIN. Power-save mode, entered automatically and seamlessly if the load is small, maintains high efficiency over the entire load range. Entering shutdown mode turns the device off, and shutdown current consumption is less than 2 μA.

The device package is a 16-pin VQFN measuring 3-mm × 3-mm (RGT) and has an exposed thermal pad for better thermal performance.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
TPS62152-Q1	VQFN (16)	3.00 mm × 3.00 mm
