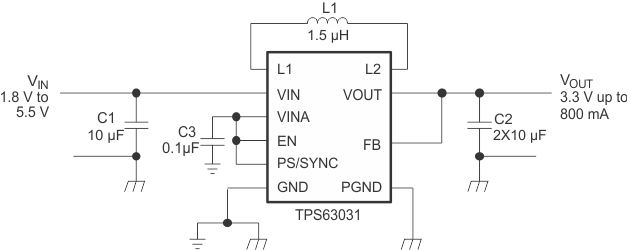

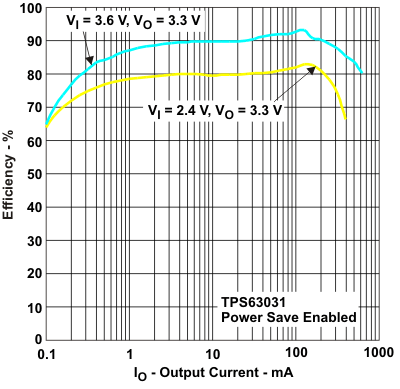

TPS63031 - 产品图解:
TPS63031-High Efficient Single Inductor Buck-Boost Converter w/1.8-A Switches
TPS63031-转换器(集成开关)-DC/DC开关稳压器-电源管理
TPS63031-TPS6303x High Efficiency Single Inductor Buck-Boost Converter With 1-A Switches
承诺原装正品
专营TI,真正优化您的供应链
TI产品 - TPS63031介绍
TPS63031 - High Efficient Single Inductor Buck-Boost Converter w/1.8-A Switches

TPS63031是TI公司的一款转换器(集成开关)产品,TPS63031是High Efficient Single Inductor Buck-Boost Converter w/1.8-A Switches,本页介绍了TPS63031的产品说明、应用、特性等,并给出了与TPS63031相关的TI元器件型号供参考。

TPS63031 - High Efficient Single Inductor Buck-Boost Converter w/1.8-A Switches - 转换器(集成开关) - DC/DC开关稳压器 - TI公司(Texas Instruments,德州仪器)

产品特性
  • Input Voltage Range: 1.8 V to 5.5 V
  • Fixed and Adjustable Output Voltage Options from 1.2 V to 5.5 V
  • Up to 96% Efficiency
  • 800-mA Output Current at 3.3 V in Step-Down Mode (VIN = 3.6 V to 5.5 V)
  • Up to 500-mA Output Current at 3.3 V in Boost Mode (VIN > 2.4 V)
  • Automatic Transition Between Step-Down and Boost Mode
  • Device Quiescent Current less than 50 μA
  • Power-Save Mode for Improved Efficiency at Low Output Power
  • Forced Fixed Frequency Operation and Synchronization Possible
  • Load Disconnect During Shutdown
  • Overtemperature Protection
  • Available in a Small 2.5-mm × 2.5-mm 10-Pin VSON Package (QFN)
产品应用
  • All Two-Cell and Three-Cell Alkaline, NiCd or NiMH or Single-Cell Li Battery Powered Products
  • Portable Audio Players
  • Mobile Phones
  • Personal Medical Products
  • White LEDs
产品说明

The TPS6303x devices provide a power supply solution for products powered by either a two-cell or three-cell alkaline, NiCd or NiMH battery, or a one-cell Li-ion or Li-polymer battery. Output currents can go as high as 600 mA while using a single-cell Li-ion or Li-polymer battery, and discharge it down to 2.5 V or lower. The buck-boost converter is based on a fixed frequency, pulse width modulation (PWM) controller using synchronous rectification to obtain maximum efficiency. At low load currents, the converter enters power-save mode to maintain high efficiency over a wide load current range. The power-save mode can be disabled, forcing the converter to operate at a fixed switching frequency. The maximum average current in the switches is limited to a typical value of 1000 mA. The output voltage is programmable using an external resistor divider, or is fixed internally on the chip. The converter can be disabled to minimize battery drain. During shutdown, the load is disconnected from the battery.

The TPS6303x devices operate over a free air temperature range of –40°C to 85°C. The devices are packaged in a 10-pin VSON package measuring 2.5 mm × 2.5 mm (DSK).

产品器件信息
PART NUMBERPACKAGEBODY SIZE (NOM)
TPS63030 TPS63031VSON (10)2.50 mm x 2.50 mm
