TPS65720 - 双通道电源管理 IC (PMIC)，具有电池充电器、一个降压转换器和一个 LDO

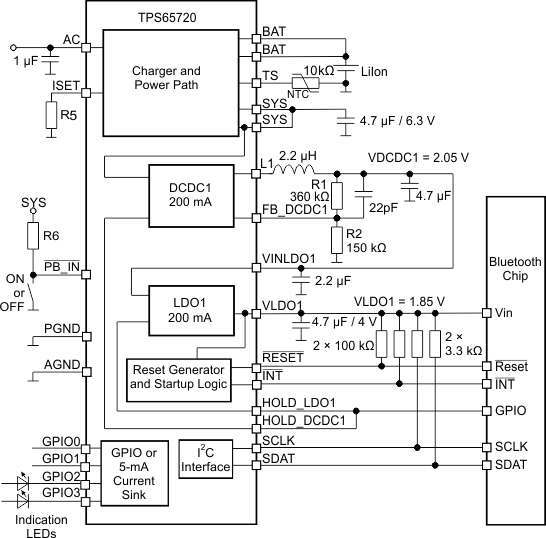

TPS65720是TI德州仪器公司的一款无产品，TPS65720是双通道电源管理 IC (PMIC)，具有电池充电器、一个降压转换器和一个 LDO，本站介绍了TPS65720的封装应用图解、特点和优点、功能等，并给出了与TPS65720相关的TI元器件型号供参考。

TPS65720 - 双通道电源管理 IC (PMIC)，具有电池充电器、一个降压转换器和一个 LDO - 无 - 电源管理多通道IC(PMIC)解决方案 - 德州仪器

产品特性

Battery Charger With Power Path Management
28-V Rated Power Path With:
- 100-mA Input Current Limit
- 500-mA Input Current Limit
300-mA Charge Current
200-mA Step-Down Converter for TPS65720
400-mA Step-Down Converter for TPS65721, TPS657201, TPS657202
Up to 92% Efficiency
VIN Range for DCDC Converter From 2.3 V to 5.6 V
2.25-MHz Fixed Frequency Operation
Power Save Mode at Light Load Current
Output Voltage Accuracy in PWM Mode ±2%
100% Duty Cycle for Lowest Dropout
1 General Purpose 200-mA LDO
VIN Range for LDO From 1.8 V to 5.6 V
I2C Compatible Interface
4GPIOs
Available in a 25-Ball DSBGA With 0.4-mm Pitch and in 4-mm × 4-mm 32-Pin WQFN Package

产品应用

Bluetooth Headsets
Handheld Equipment
Wearables, Smart Watches
Portable Accessories

产品说明

The TPS6572x device is a small power management unit targeted for Bluetooth headsets or other portable low-power consumer-end equipments. The device contains an USB friendly Lithium-Ion battery charger, a highly efficient step-down converter, a low-dropout linear regulator, and additional supporting functions. The device is controlled by an I2C interface. Several settings can be customized by the use of nonvolatile memory which is factory programmed.

The 2.25-MHz step-down converter enters a low-power mode at light load for maximum efficiency across the widest possible range of load currents. For low-noise applications the devices can be forced into fixed-frequency PWM mode using the I2C-compatible interface.

The device allows the use of small inductors and capacitors to achieve a small solution size. The TPS65720 provides an output current of up to 200 mA on the DC-DC converter while TPS657201, TPS657202, and TPS65721 provide up to 400 mA. The TPS6572x also integrates one 200-mA LDO. The LDO operates with an input voltage range from 1.8 V to 5.6 V, thus allowing it to be supplied from the output of the step-down converter or directly from the system voltage.

The TPS65720, TPS657201, and TPS657202 come in a small 25-ball 2-mm × 2-mm wafer chip scale package (DSBGA) with 0.4-mm ball pitch or a 4-mm × 4-mm WQFN package with a 0.4-mm pitch (TPS65721).

Device Information (1)

PART NUMBER	PACKAGE	BODY SIZE (NOM)
TPS65720x	DSBGA (25)	2.11 mm × 2.11 mm
TPS65721	WQFN (32)	4.00 mm × 4.00 mm
