TPS79801-Q1 - Automotive Catalog 50 mA, 3 V to 50 V, Micropower, Low-Dropout Linear Regulator

TPS79801-Q1是TI德州仪器公司的一款单通道LDO产品，TPS79801-Q1是Automotive Catalog 50 mA, 3 V to 50 V, Micropower, Low-Dropout Linear Regulator，本站介绍了TPS79801-Q1的封装应用图解、特点和优点、功能等，并给出了与TPS79801-Q1相关的TI元器件型号供参考。

TPS79801-Q1 - Automotive Catalog 50 mA, 3 V to 50 V, Micropower, Low-Dropout Linear Regulator - 单通道LDO - 线性稳压器(LDO) - 德州仪器

产品特性

Qualified for Automotive Applications
Wide Input Voltage Range: 3 V to 50 V
Low Quiescent Current: 40 μA (Typical)
Low Dropout Voltage: 300 mV (Typical)
Output Current: 50 mA
No Input Protection Diodes Needed
Adjustable Output From 1.275 V to 28 V
1-μA Quiescent Current in Shutdown
Stable With 1-μF Output Capacitor
Stable With Aluminum, Tantalum, or Ceramic Capacitors
Reverse Input-Battery Protection
Reverse Output Current Flow Protection
Thermal Limiting
Available in an 8-Pin MSOP-PowerPAD IC Package

产品应用

Low-Current, High-Voltage Regulators
Regulators for Battery-Powered Systems
Telecom
Automotives

产品说明

The TPS798xx-Q1 is the first device in a line of 50-V high-voltage micropower low-dropout (LDO) linear regulators. This device is capable of supplying 50-mA output current with a dropout voltage of only 300mV. Designed for low quiescent current high voltage (50 V) applications, 40 μA operating and 1μA in shutdown makes the TPS798xx-Q1 an ideal choice for battery-powered or high-voltage systems. Quiescent current is also well-controlled in dropout.

Other features of the TPS798xx-Q1 include the ability to operate with low equivalent series resistance (ESR) ceramic output capacitors. This device is stable with only 1 μF on the output; most older devices require from 10-μF to 100-μF tantalum capacitors for stability. Small ceramic capacitors can be used without the necessary addition of ESR, as is common with other regulators. Internal protection circuitry includes reverse input-battery protection, reverse output current protection, current limiting, and thermal limiting to protect the device in various fault conditions.

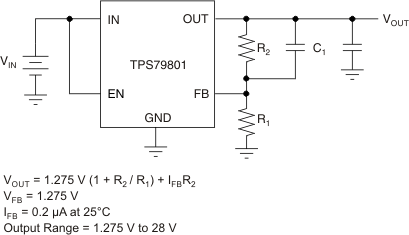

This device is available in a fixed output voltage of 5 V (TPS79850) and with an adjustable output voltage with a 1.275-V reference voltage (TPS79801). The TPS798xx-Q1 regulator is available in a 8-pin MSOP-PowerPAD (DGN) package with an exposed pad for enhanced thermal management capability.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
TPS79801-Q1	MSOP-PowerPAD (8)	3.00 mm × 3.00 mm
TPS79850-Q1	MSOP-PowerPAD (8)	3.00 mm × 3.00 mm
