TPS7A6601-Q1 - 汽车类、高压、超低静态电流、低压降稳压器

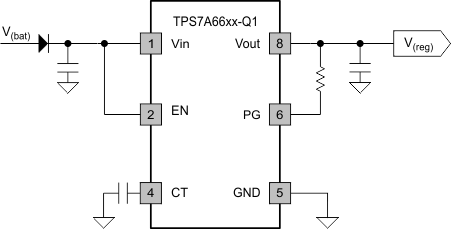

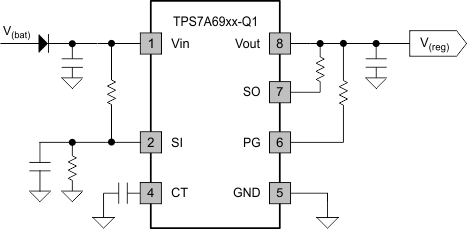

TPS7A6601-Q1是TI德州仪器公司的一款单通道LDO产品，TPS7A6601-Q1是汽车类、高压、超低静态电流、低压降稳压器，本站介绍了TPS7A6601-Q1的封装应用图解、特点和优点、功能等，并给出了与TPS7A6601-Q1相关的TI元器件型号供参考。

TPS7A6601-Q1 - 汽车类、高压、超低静态电流、低压降稳压器 - 单通道LDO - 线性稳压器(LDO) - 德州仪器

产品特性

Qualified for Automotive Applications
AEC-Q100 Qualified With the Following Results:
- Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature Range
- Device HBM ESD Classification Level H2
- Device CDM ESD Classification Level C4
4-V to 40-V Wide Vin Input Voltage Range With up to 45-V Transient
Output Current 150 mA
Low Quiescent Current, I(q):
- 2 µA when EN = Low (Shutdown Mode)
- 12 µA Typical at Light Loads
Low ESR Ceramic Output Stability Capacitor (2.2µF–100 µF)
300-mV Dropout Voltage at 150 mA (Typical, V(Vin) = 4 V)
Fixed (3.3-V and 5-V) and Adjustable (1.5-V to 5-V) Output Voltages (Adjustable for TPS7A66xx-Q1 Only)
Low Input Voltage Tracking
Integrated Power-On Reset
- Programmable Reset-Pulse Delay
- Open-Drain Reset Output
Integrated Fault Protection
- Thermal Shutdown
- Short-Circuit Protection
Input Voltage Sense Comparator (TPS7A69xx-Q1 Only)
Packages
- 8-Pin SOIC-D for TPS7A69xx-Q1
- 8-Pin MSOP-DGN for TPS7A66xx-Q1

产品应用

Infotainment Systems With Sleep Mode
Body Control Modules
Always-On Battery Applications
- Gateway Applications
- Remote Keyless Entry Systems
- Immobilizers

产品说明

The TPS7A66xx-Q1 and TPS7A69xx-Q1 are low-dropout linear regulators designed for up to 40-V Vin operations. With only 12-µA quiescent current at no load, they are quite suitable for standby microprocessor control-unit systems, especially in automotive applications.

The devices feature integrated short-circuit and overcurrent protection. The devices implement reset delay on power up to indicate the output voltage is stable and in regulation. One can program the delay with an external capacitor. A low-voltage tracking feature allows for a smaller input capacitor and can possibly eliminate the need of using a boost converter during cold-crank conditions.

The devices operate in the –40°C to 125°C temperature range. These features suit the devices well for power supplies in various automotive applications.

产品器件信息

DEVICE NUMBER	PACKAGE	BODY SIZE (NOM)
TPS7A6601-Q1	MSOP (8)	3.00 mm × 3.00 mm
TPS7A6633-Q1
TPS7A6650-Q1
TPS7A6933-Q1	SOIC (8)	4.90 mm × 3.91 mm
TPS7A6950-Q1	SOIC (8)	4.90 mm × 3.91 mm
