TS5A22364 - 具有负轨功能的 0.65Ω 双路 SPDT 模拟开关

TS5A22364是TI德州仪器公司的一款模拟开关产品，TS5A22364是具有负轨功能的 0.65Ω 双路 SPDT 模拟开关，本站介绍了TS5A22364的封装应用图解、特点和优点、功能等，并给出了与TS5A22364相关的TI元器件型号供参考。

TS5A22364 - 具有负轨功能的 0.65Ω 双路 SPDT 模拟开关 - 模拟开关 - 信号开关 - 德州仪器

产品特性

Specified Break-Before-Make Switching
Negative Signaling Capability: Maximum Swing from –2.75 V to 2.75 V (VCC = 2.75 V)
Internal Shunt Switch Prevents Audible Click-and-Pop When Switching Between Two Sources
Low ON-State Resistance (0.65 Ω Typical)
Low Charge Injection
Excellent ON-State Resistance Matching
2.3-V to 5.5-V Power Supply (VCC)
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Performance Tested Per JESD 22
- 2500-V Human-Body Model (A114-B, Class II)
- 1500-V Charged-Device Model (C101)
- 200-V Machine Model (A115-A)

产品应用

Cell Phones
PDAs
Portable Instrumentation
Audio Routing
Medical Imaging

产品说明

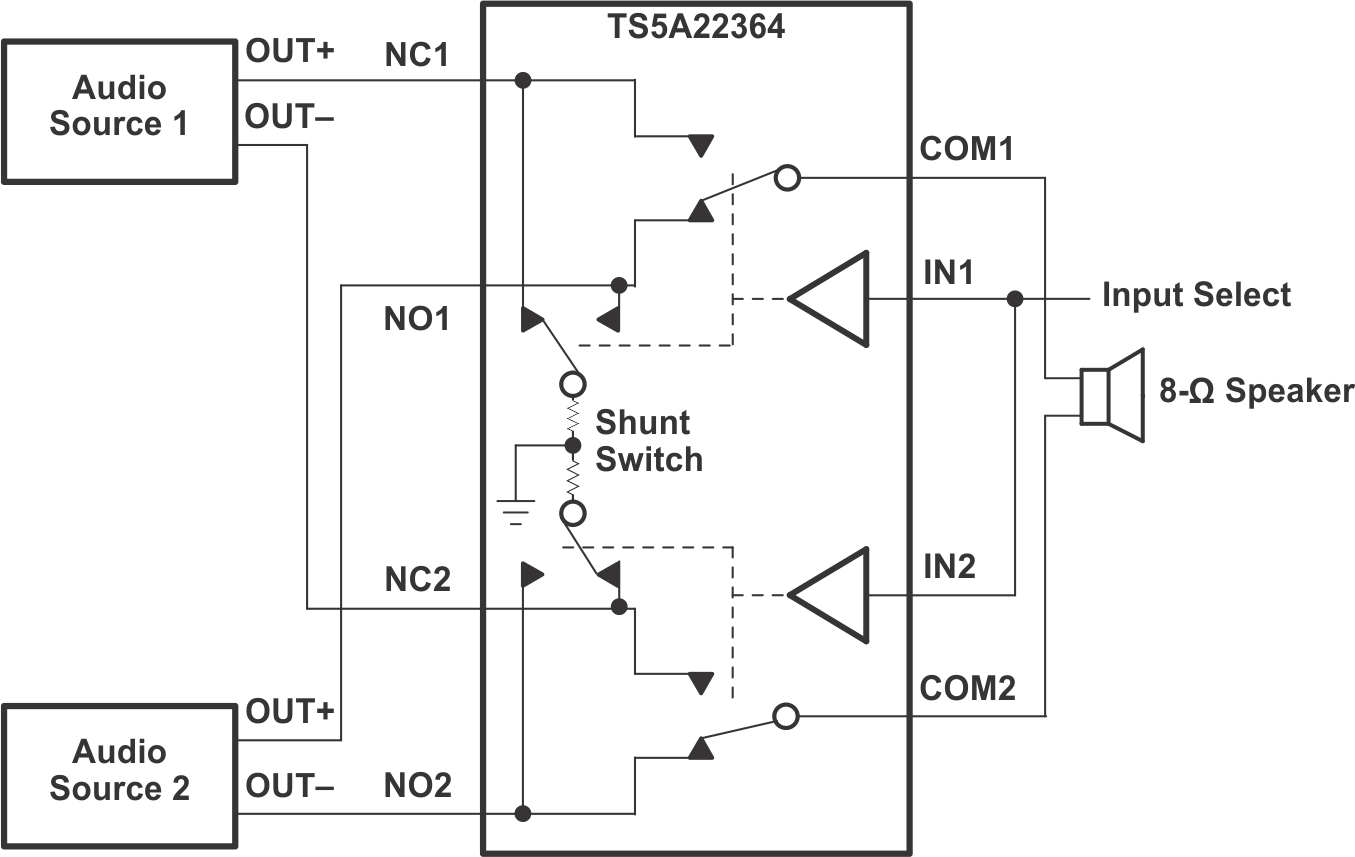

The TS5A22364 is a bidirectional, 2-channel, single-pole double-throw (SPDT) analog switch designed to operate from 2.3 V to 5.5 V. The device features negative signal capability that allows signals below ground to pass through the switch without distortion. Additionally, the TS5A22364 includes an internal shunt switch, which automatically discharges any capacitance at the NC or NO terminals when they are unconnected to COM. This reduces the audible click/pop noise when switching between two sources. The break-before-make feature prevents signal distortion during the transferring of a signal from one path to another. Low ON-state resistance, excellent channel-to-channel ON-state resistance matching, and minimal total harmonic distortion (THD) performance are ideal for audio applications. The 3.00-mm x 3.00-mm DRC package is also available as a nonmagnetic package for medical imaging applications.

Device Information (1)

PART NUMBER	PACKAGE	BODY SIZE (NOM)
TS5A22364	VSON (10)	3.00 mm × 3.00 mm
	DSBGA (10)	1.90 mm × 1.40 mm
	VSSOP (10)	3.00 mm × 3.00 mm
