TS5A3159A技术文档下载：

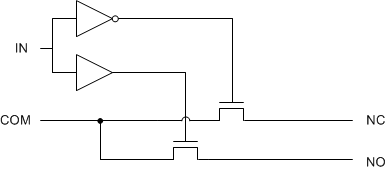

TS5A3159A - 产品图解：
TS5A3159A - 1Ω SPDT 模拟开关 5V/3.3V 单通道 2:1 多路复用器/多路解复用器
TS5A3159A是TI公司的一款模拟开关产品，TS5A3159A是1Ω SPDT 模拟开关 5V/3.3V 单通道 2:1 多路复用器/多路解复用器，本页介绍了TS5A3159A的产品说明、应用、特性等，并给出了与TS5A3159A相关的TI元器件型号供参考。
TS5A3159A - 1Ω SPDT 模拟开关 5V/3.3V 单通道 2:1 多路复用器/多路解复用器 - 模拟开关 - 信号开关 - TI公司（Texas Instruments，德州仪器）
产品特性
- Specified Break-Before-Make Switching
- Isolation in Power-Down Mode, V+ = 0
- Terminal Compatible With TS5A3159 Device
- Low ON-State Resistance (1 Ω)
- Control Inputs are 5.5-V Tolerant
- Low Charge Injection
- Excellent On-State Resistance Matching
- Low Total Harmonic Distortion (THD)
- 1.65-V to 5.5-V Single-Supply Operation
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Performance Tested Per JESD
- 2000-V Human-Body Model (A114-B, Class II)
- 1000-V Charged-Device Model (C101)
产品应用
- Cell Phones
- PDAs
- Portable Instrumentation
- Audio and Video Signal Routing
- Low-Voltage Data Acquisition Systems
- Communication Circuits
- Modems
- Hard Drives
- Computer Peripherals
- Wireless Terminals and Peripherals
产品说明
The TS5A3159A device is a single-pole double-throw (SPDT) analog switch that is designed to operate from 1.65 V to 5.5 V. The device offers low on-state resistance and excellent ON-state resistance matching with the break-before-make feature, to prevent signal distortion during the transferring of a signal from one channel to another. The device has an excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable for portable audio applications.
产品器件信息
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| TS5A3159ADBVR | SOT-23 (6) | 2.90 mm × 1.60 mm |
| TS5A3159ADCKR | SC70 (6) | 2.00 mm × 1.25 mm |
| TS5A3159AYZPR | DSBGA (6) | 1.41 mm × 0.91 mm |
