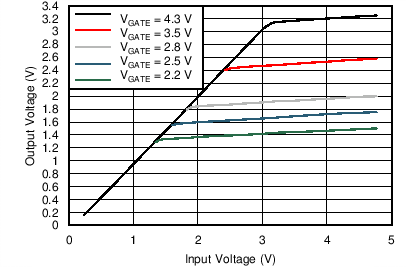

TXS0104E - 产品图解：
TXS0104E-用于漏极开路应用的 4 位双向电压电平转换器
TXS0104E-双向电压转换-电压电平转换-逻辑
TI芯片：
承诺原装正品
专营TI德州仪器，真正优化您的供应链
TI产品 - TXS0104E介绍

TXS0104E - 用于漏极开路应用的 4 位双向电压电平转换器

TXS0104E是TI德州仪器公司的一款双向电压转换产品，TXS0104E是用于漏极开路应用的 4 位双向电压电平转换器，本站介绍了TXS0104E的封装应用图解、特点和优点、功能等，并给出了与TXS0104E相关的TI元器件型号供参考。

TXS0104E - 用于漏极开路应用的 4 位双向电压电平转换器 - 双向电压转换 - 电压电平转换 - 德州仪器

产品特性
  • No Direction-Control Signal Needed
  • Max Data Rates
    • 24 Mbps (Push Pull)
    • 2 Mbps (Open Drain)
  • Available in the Texas Instruments NanoFree™ Package
  • 1.65 V to 3.6 V on A port and 2.3 V to 5.5 V on B port (VCCA ≤ VCCB)
  • No Power-Supply Sequencing Required – VCCA or VCCB Can Be Ramped First
  • Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
  • ESD Protection Exceeds JESD 22
    • A Port
      • 2000-V Human-Body Model (A114-B)
      • 200-V Machine Model (A115-A)
      • 1000-V Charged-Device Model (C101)
    • B Port
      • 15-kV Human-Body Model (A114-B)
      • 200-V Machine Model (A115-A)
      • 1000-V Charged-Device Model (C101)
  • IEC 61000-4-2 ESD (B Port)
    • ±8-kV Contact Discharge
    • ±10-kV Air-Gap Discharge
产品应用
  • Handset
  • Smartphone
  • Tablet
  • Desktop PC
产品说明

This 4-bit non-inverting translator uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.65 V to 3.6 V. VCCA must be less than or equal to VCCB. The B port is designed to track VCCB. VCCB accepts any supply voltage from 2.3 V to 5.5 V. This allows for low-voltage bidirectional translation between any of the 1.8-V, 2.5-V, 3.3-V, and 5-V voltage nodes.

When the output-enable (OE) input is low, all outputs are placed in the high-impedance state.

The TXS0104E is designed so that the OE input circuit is supplied by VCCA.

To ensure the high-impedance state during power up or power down, OE should be tied to GND through a pulldown resistor; the minimum value of the resistor is determined by the current-sourcing capability of the driver.

产品器件信息
PART NUMBERPACKAGEBODY SIZE (NOM)
TXS0104ESOIC (14)8.65 mm × 3.91 mm
TSSOP (14)5.00 mm × 4.40 mm
BGA (12)2.00 mm × 2.50 mm
VQFN (14)3.50 mm × 3.50 mm
DSBGA (12)1.90 mm × 1.90 mm
