UCC27523 - 双路 5A 高速低侧电源 MOSFET 驱动器

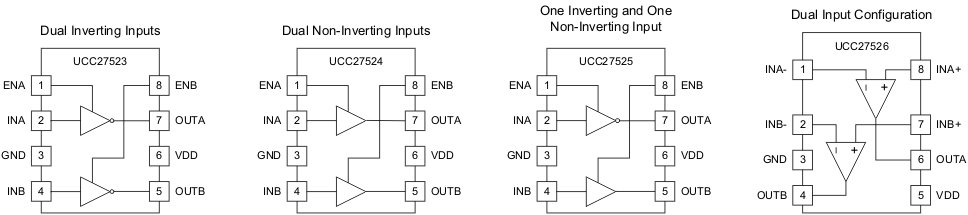

UCC27523是TI德州仪器公司的一款低侧驱动器产品，UCC27523是双路 5A 高速低侧电源 MOSFET 驱动器，本站介绍了UCC27523的封装应用图解、特点和优点、功能等，并给出了与UCC27523相关的TI元器件型号供参考。

UCC27523 - 双路 5A 高速低侧电源 MOSFET 驱动器 - 低侧驱动器 - MOSFET和IGBT栅极驱动器 - 德州仪器

产品特性

Industry-Standard Pinout
Two Independent Gate-Drive Channels
5-A Peak Source and Sink-Drive Current
Independent-Enable Function for Each Output
TTL and CMOS Compatible Logic Threshold Independent of Supply Voltage
Hysteretic-Logic Thresholds for High Noise Immunity
Inputs and Enable Pin-Voltage Levels Not Restricted by VDD Pin Bias Supply Voltage
4.5-V to 18-V Single-Supply Range
Outputs Held Low During VDD-UVLO, (Ensures Glitch-Free Operation at Power up and Power Down)
Fast Propagation Delays (13-ns Typical)
Fast Rise and Fall Times (7-ns and 6-ns Typical)
1-ns Typical Delay Matching Between Two Channels
Two Outputs are in Parallel for Higher Drive Current
Outputs Held Low When Inputs Floating
PDIP (8), SOIC (8), MSOP (8) PowerPAD™ and 3-mm × 3-mm WSON-8 Package Options
Operating Temperature Range of –40°C to 140°C

产品应用

Switched-Mode Power Supplies
DC-DC Converters
Motor Control, Solar Power
Gate Drive for Emerging Wide Band-Gap Power Devices such as GaN

产品说明

The UCC2752x family of devices are dual-channel, high-speed, low-side gate-driver devices capable of effectively driving MOSFET and IGBT power switches. Using a design that inherently minimizes shoot-through current, UCC2752x can deliver high-peak current pulses of up to 5-A source and 5-A sink into capacitive loads along with rail-to-rail drive capability and extremely small propagation delay (typically 13 ns). In addition, the drivers feature matched internal propagation delays between the two channels. These delays are very well suited for applications requiring dual-gate drives with critical timing, such as synchronous rectifiers. This also enables connecting two channels in parallel to effectively increase current-drive capability or driving two switches in parallel with one input signal. The input pin thresholds are based on TTL and CMOS compatible low-voltage logic, which is fixed and independent of the VDD supply voltage. Wide hysteresis between the high and low thresholds offers excellent noise immunity.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
UCC27523	SOT-23 (8)	4.90 mm × 3.91 mm
	HVSSOP (8)	3.00 mm × 3.00 mm
	WSON (8)	3.00 mm × 3.00 mm
UCC27524	SOT-23 (8)	4.90 mm × 3.91 mm
	HVSSOP (8)	3.00 mm × 3.00 mm
	WSON (8)	3.00 mm × 3.00 mm
	PDIP (8)	9.81 mm × 6.35 mm
UCC27525	SOT-23 (8)	4.90 mm × 3.91 mm
	HVSSOP (8)	3.00 mm × 3.00 mm
	WSON (8)	3.00 mm × 3.00 mm
UCC27526	WSON (8)	3.00 mm × 3.00 mm
