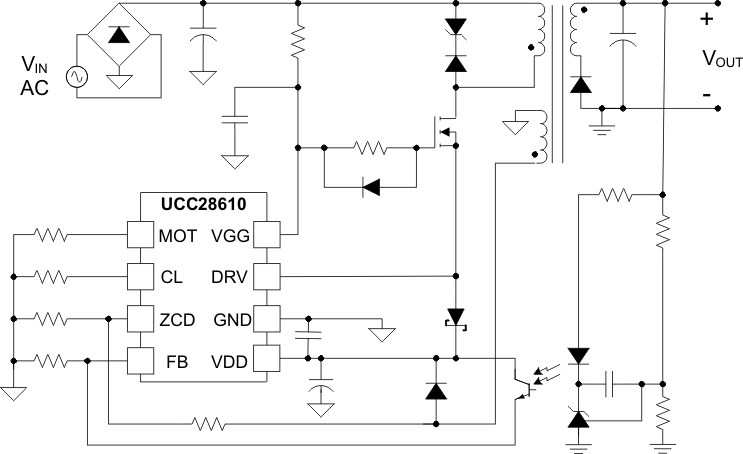

UCC28610 - 产品图解：
UCC28610-25-90W Cascoded Flyback Power Supply Controller
UCC28610-反激式控制器-离线隔离型DC/DC控制器和转换器-电源管理
TI芯片：
承诺原装正品
专营TI德州仪器，真正优化您的供应链
TI产品 - UCC28610介绍

UCC28610 - 25-90W Cascoded Flyback Power Supply Controller

UCC28610是TI德州仪器公司的一款反激式控制器产品，UCC28610是25-90W Cascoded Flyback Power Supply Controller，本站介绍了UCC28610的封装应用图解、特点和优点、功能等，并给出了与UCC28610相关的TI元器件型号供参考。

UCC28610 - 25-90W Cascoded Flyback Power Supply Controller - 反激式控制器 - 离线隔离型DC/DC控制器和转换器 - 德州仪器

产品特性
  • Cascoded Configuration Allows Fully Integrated Current Control Without External Sense Resistor
  • Fast Start Up With Low Standby Power Achieved by Cascode Configuration
  • Frequency and Peak Current Modulation for Optimum Efficiency Over Entire Operating Range
  • Green-Mode (GM) Burst Switching Packets Improve No-Load Efficiency
  • Advanced Overcurrent Protection Limits RMS Input and Output Currents
  • Thermal Shutdown
  • Timed Overload With Retry or Latch-Off Response
  • Programmable Opto-Less Output Overvoltage Protection
  • Fast Latched Fault Recovery
  • 8-Pin SOIC Package and 8-Pin PDIP Lead-Free Packages
产品应用
  • Universal Input AC and DC Adapters, 12 to 65 W
  • High Efficiency Housekeeping and Auxillary Power Supplies
  • Offline Battery Chargers
  • Consumer Electronics (DVD Players, Set-Top Boxes, DTV, Gaming, Printers)
产品说明

The UCC28610 brings a new level of performance and reliability to the AC and DC consumer power supply solution.

A PWM modulation algorithm varies both the switching frequency and primary current while maintaining discontinuous or transition mode operation over the entire operating range. Combined with a cascoded architecture, these innovations result in efficiency, reliability, and system cost improvements over a conventional flyback architecture.

The UCC28610 offers a predictable maximum power threshold and a timed response to an overload, allowing safe handling of surge power requirements. Overload fault response is user-programmed for retry or latch-off mode. Additional protection features include output overvoltage detection, programmable maximum on-time, and thermal shutdown.

产品器件信息
PART NUMBERPACKAGEBODY SIZE (NOM)
UCC28610SOIC (8)4.90 mm x 3.91 mm
PDIP (8)9.81 mm x 6.35 mm
