DCP021205 - 微型 2W 隔离未稳压 DC/DC 转换器

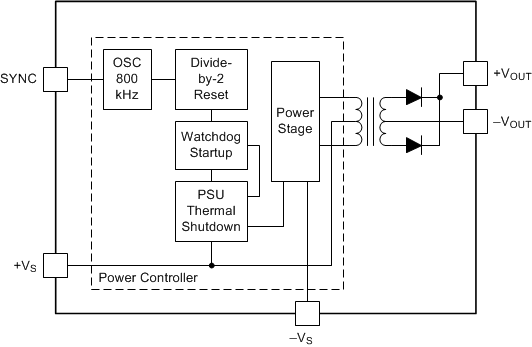

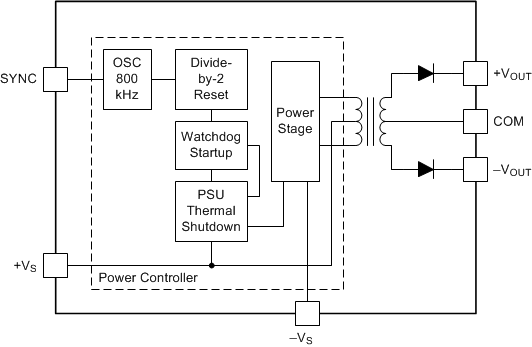

DCP021205是TI德州仪器公司的一款隔离式模块产品，DCP021205是微型 2W 隔离未稳压 DC/DC 转换器，本站介绍了DCP021205的封装应用图解、特点和优点、功能等，并给出了与DCP021205相关的TI元器件型号供参考。

DCP021205 - 微型 2W 隔离未稳压 DC/DC 转换器 - 隔离式模块 - 电源模块 - 德州仪器

产品特性

1-kV Isolation (Operational)
Device-to-Device Synchronization
EN55022 Class B EMC Performance
UL1950 Recognized Component
7-Pin PDIP and 12-Pin SOP Packages

产品应用

Signal Path Isolation
Ground Loop Elimination
Data Acquisition
Industrial Control and Instrumentation
Test Equipment

产品说明

The DCP02 series is a family of 2-W, isolated, unregulated DC/DC converter modules. Requiring a minimum of external components and including on-chip device protection, the DCP02 series of devices provide extra features such as output disable and synchronization of switching frequencies.

This combination of features and small size makes the DCP02 series of devices suitable for a wide range of applications, and is an easy-to-use solution in applications requiring signal path isolation.

WARNING: This product has operational isolation and is intended for signal isolation only. It should not be used as a part of a safety isolation circuit requiring reinforced isolation. See definitions in the Feature Description section.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
DCP02xxxx	PDIP (7)	19.18 mm × 10.60 mm
DCP02xxxx	SOP (12)	17.90 mm × 10.33 mm
