LM27313-Q1是TI公司的一款转换器（集成开关）产品，LM27313-Q1是具有 30V 内部 FET 开关（采用 SOT-23 封装）的 1.6 MHz 升压转换器，本页介绍了LM27313-Q1的产品说明、应用、特性等，并给出了与LM27313-Q1相关的TI元器件型号供参考。
LM27313-Q1 - 具有 30V 内部 FET 开关（采用 SOT-23 封装）的 1.6 MHz 升压转换器 - 转换器（集成开关） - DC/DC开关稳压器 - TI公司（Texas Instruments，德州仪器）
- LM27313-Q1 is an Automotive-Grade Product that is AEC-Q100 Grade 1 Qualified (–40°C to +125°C Operating Junction Temperature)
- 30-V DMOS FET Switch
- 1.6-MHz Switching Frequency
- Low RDS(ON) DMOS FET
- Switch Current up to 800 mA
- Wide Input Voltage Range (2.7 V to 14 V)
- Low Shutdown Current (< 1 µA)
- 5-Lead SOT-23 Package
- Uses Tiny Capacitors and Inductors
- Cycle-by-Cycle Current Limiting
- Internally Compensated
- White LED Current Source
- PDAs and Palm-Top Computers
- Digital Cameras
- Portable Phones, Games, and Media Players
- GPS Devices

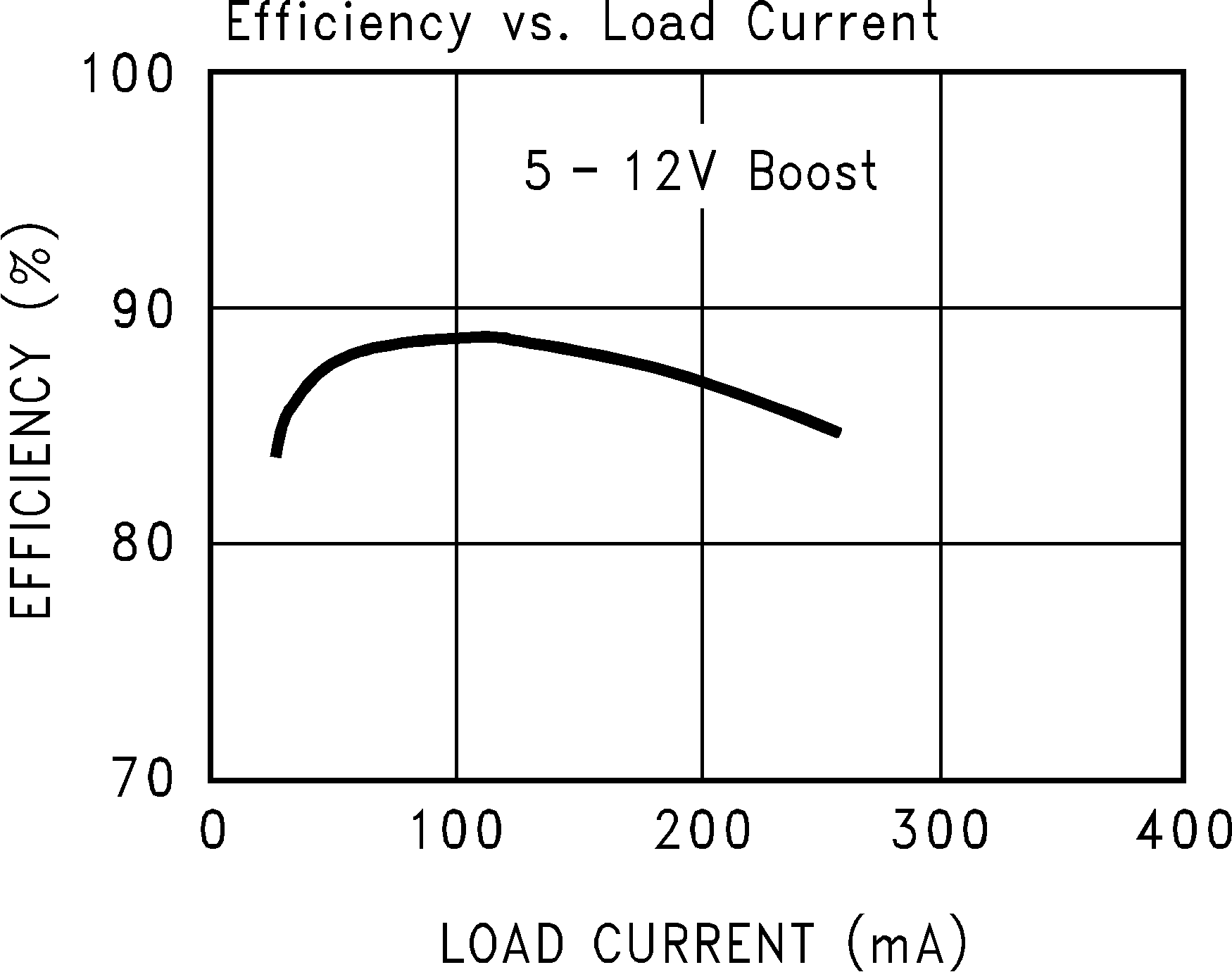

The LM27313/-Q1 switching regulator is a current-mode boost converter with a fixed operating frequency of 1.6 MHz.
The use of the SOT-23 package, made possible by the minimal losses of the 800-mA switch, and the small inductors and capacitors result in extremely high power density. The 30-V internal switch makes these solutions perfect for boosting to voltages of 5 V to 28 V.
This device has a logic-level shutdown pin that can be used to reduce quiescent current and extend battery life.
Protection is provided through cycle-by-cycle current limiting and thermal shutdown. Internal compensation simplifies design and reduces component count.
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| LM27313 | SOT-23 (5) | 2.90 mm x 1.60 mm |
| LM27313-Q1 |
