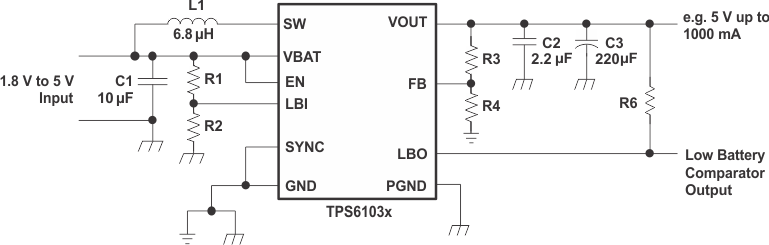

TPS61031 - 产品图解：
TPS61031-TSSOP-16 中的具有 20uA Iq 的 3.3V 输出 1A 96% 效率升压转换器
TPS61031-转换器（集成开关）-DC/DC开关稳压器-电源管理
TI芯片：
承诺原装正品
专营TI德州仪器，真正优化您的供应链
TI产品 - TPS61031介绍

TPS61031 - TSSOP-16 中的具有 20uA Iq 的 3.3V 输出 1A 96% 效率升压转换器

TPS61031是TI德州仪器公司的一款转换器（集成开关）产品，TPS61031是TSSOP-16 中的具有 20uA Iq 的 3.3V 输出 1A 96% 效率升压转换器，本站介绍了TPS61031的封装应用图解、特点和优点、功能等，并给出了与TPS61031相关的TI元器件型号供参考。

TPS61031 - TSSOP-16 中的具有 20uA Iq 的 3.3V 输出 1A 96% 效率升压转换器 - 转换器（集成开关） - DC/DC开关稳压器 - 德州仪器

产品特性
  • 96% Efficient Synchronous Boost Converter With 1000-mA Output Current From 1.8-V Input
  • Device Quiescent Current: 20-µA (Typ)
  • Input Voltage Range: 1.8-V to 5.5-V
  • Fixed and Adjustable Output Voltage Options Up to 5.5-V
  • Power Save Mode for Improved Efficiency at Low Output Power
  • Low Battery Comparator
  • Low EMI-Converter (Integrated Antiringing Switch)
  • Load Disconnect During Shutdown
  • Over-Temperature Protection
  • Available in a Small 4 mm x 4 mm QFN-16 or in a TSSOP-16 Package
产品应用

    All Single Cell Li or Dual Cell Battery Operated Products as MP-3 Player, PDAs, and Other Portable Equipment

产品说明

The TPS6103x devices provide a power supply solution for products powered by either a one-cell Li-Ion or Li-polymer, or a two to three-cell alkaline, NiCd or NiMH battery. The converter generates a stable output voltage that is either adjusted by an external resistor divider or fixed internally on the chip. It provides high efficient power conversion and is capable of delivering output currents up to 1 A at 5 V at a supply voltage down to 1.8 V. The implemented boost converter is based on a fixed frequency, pulse-width- modulation (PWM) controller using a synchronous rectifier to obtain maximum efficiency. At low load currents the converter enters Power Save mode to maintain a high efficiency over a wide load current range. The Power Save mode can be disabled, forcing the converter to operate at a fixed switching frequency. It can also operate synchronized to an external clock signal that is applied to the SYNC pin. The maximum peak current in the boost switch is limited to a value of 4500 mA.

The converter can be disabled to minimize battery drain. During shutdown, the load is completely disconnected from the battery. A low-EMI mode is implemented to reduce ringing and, in effect, lower radiated electromagnetic energy when the converter enters the discontinuous conduction mode.

产品器件信息
PART NUMBERPACKAGEBODY SIZE (NOM)
TPS61030TSSOP (16) 5.00 mm × 4.40 mm
TPS61031
TPS61032
TPS61030QFN (16) 4.00 mm x 4.00 mm
TPS61031
TPS61032
