LMZ36002是TI公司的一款非隔离式模块产品，LMZ36002是LMZ36002 4.5V 至 60V 输入、2A、SIMPLE SWITCHER 电源模块，本页介绍了LMZ36002的产品说明、应用、特性等，并给出了与LMZ36002相关的TI元器件型号供参考。
LMZ36002 - LMZ36002 4.5V 至 60V 输入、2A、SIMPLE SWITCHER 电源模块 - 非隔离式模块 - 电源模块 - TI公司（Texas Instruments，德州仪器）
- Complete Integrated Power Solution Allows Small Footprint, Low-Profile Design
- 10 mm × 10 mm × 4.3 mm Package
- Wide-Output Voltage Adjust (2.5 V to 7.5 V)
- Adjustable Switching Frequency (200 kHz to 1 MHz)
- Synchronizes to an External Clock
- Automatic PFM Mode for Light Load Efficiency
- Adjustable Slow-start
- Output Voltage Sequencing / Tracking
- Power Good Output
- Programmable Undervoltage Lockout (UVLO)
- Over-Temperature Thermal Shutdown Protection
- Over-Current Protection (Hiccup Mode)
- Pre-Bias Output Start-Up
- Operating Temperature Range: –40°C to 105°C
- Enhanced Thermal Performance: 14°C/W
- Meets EN55022 Class B Emissions – Integrated Shielded Inductor
- Industrial and Motor Controls
- Automated Test Equipment
- Medical and Imaging Equipment
- High Density Power Systems

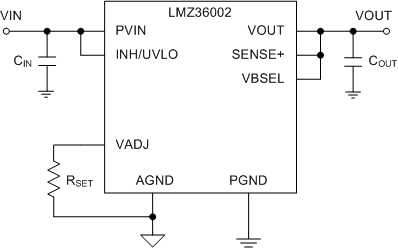

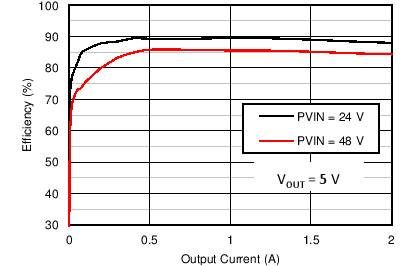

The LMZ36002 SIMPLESWITCHER® power module is an easy-to-use integrated power supply that combines a 2-A DC-DC converter with a shielded inductor and passives into a low profile, QFN package. This total power solution allows as few as three external components while still leaving the ability to adjust key parameters to meet specific design requirements.
The QFN package is easy to solder to a printed circuit board, allows reflow profiles up to 260°C, and has excellent power dissipation capability. The LMZ36002 offers flexibilty with many features and is ideal for powering a wide range of devices and systems.
| DEVICE NUMBER | PACKAGE | BODY SIZE |
|---|---|---|
| LMZ36002 | QFN (43) | 10.0 mm × 10.0 mm |
