PCM1753-Q1 - 汽车类 106dB SNR 立体声 DAC（软件控制）

PCM1753-Q1是TI德州仪器公司的一款音频DAC产品，PCM1753-Q1是汽车类 106dB SNR 立体声 DAC（软件控制），本站介绍了PCM1753-Q1的封装应用图解、特点和优点、功能等，并给出了与PCM1753-Q1相关的TI元器件型号供参考。

PCM1753-Q1 - 汽车类 106dB SNR 立体声 DAC（软件控制） - 音频DAC - 音频转换器 - 德州仪器

产品特性

Qualified for Automotive Applications
AEC-Q100 Qualified With the Following Results:
- Device Temperature Grade 2: –40°C to 105°C Ambient Operating Temperature Range
- Device HBM ESD Classification Level 2
- Device CDM ESD Classification Level C4B
24-Bit Resolution
Analog Performance (VCC = 5 V)
- Dynamic Range: 106 dB
- SNR: 106 dB, Typical
- THD+N: 0.002%, Typical
- Full-Scale Output: 4 VPP, Typical
4× and 8× Oversampling Digital Filter
- Stop-Band Attenuation: –50 dB
- Pass-Band Ripple: ±0.04 dB
Sampling Frequency: 5 kHz to 200 kHz
System Clock: 128 fS, 192 fS, 256 fS, 384 fS, 512 fS, 768 fS, 1152 fS with Auto Detect
Hardware Control (PCM1754-Q1)
- I2S and 16-Bit Word, Right-Justified
- 44.1 kHz Digital De-Emphasis
- Soft Mute
- Zero Flag for L-, R-Channel Common Output
Power Supply: 5-V Single Supply
Small 16-Lead SSOP Package, Lead-Free

产品应用

Automotive Infotainment and Cluster
A/V Receivers
HDTV Receivers
Car Audio Systems
Other Applications Requiring 24-Bit Audio

产品说明

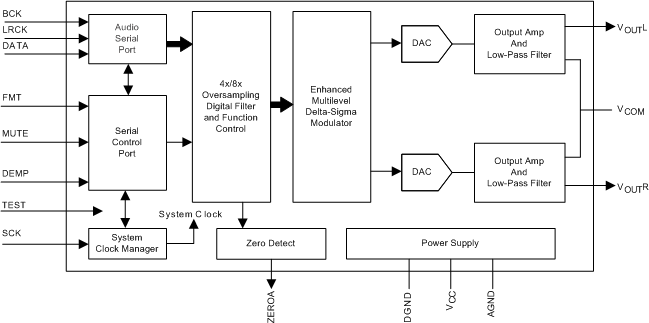

The PCM175x-Q1 family of devices is a CMOS, monolithic, integrated circuit, which includes stereo digital-to-analog converters and support circuitry in a small 16-lead SSOP package. The data converters use TI's enhanced multilevel delta-sigma architecture, which employs 4th-order noise shaping and 8-level amplitude quantization to achieve excellent dynamic performance and improved tolerance to clock jitter. The PCM175x-Q1 family of devices accepts industry-standard audio data formats with 16- to 24-bit data, providing easy interfacing to audio DSP and decoder chips. Sampling rates up to 200 kHz are supported. A full set of user-programmable functions is accessible through a three-wire serial control port, which supports register write functions.

The PCM1753-Q1 device is pin-compatible with the PCM1748, PCM1742, and PCM1741 devices, except for pin 5.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
PCM1753-Q1	SSOP (16)	4.90 mm × 3.90 mm
PCM1754-Q1	SSOP (16)	4.90 mm × 3.90 mm
