TPS22929D - 具有控制启动的低输入电压、1.8A 单通道负载开关

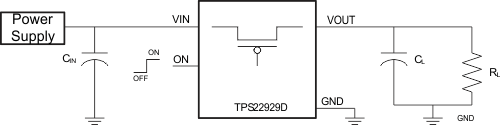

TPS22929D是TI德州仪器公司的一款配电与蓄电产品，TPS22929D是具有控制启动的低输入电压、1.8A 单通道负载开关，本站介绍了TPS22929D的封装应用图解、特点和优点、功能等，并给出了与TPS22929D相关的TI元器件型号供参考。

TPS22929D - 具有控制启动的低输入电压、1.8A 单通道负载开关 - 配电与蓄电 - 集成负载开关 - 德州仪器

产品特性

Integrated Single Load Switch
Small SOT23-6 Package
Input Voltage Range: 1.4 V to 5.5 V

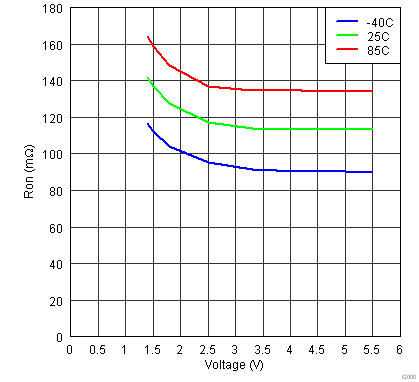

Low ON-Resistance
- rON = 115 mΩ at VIN = 5 V
- rON = 115 mΩ at VIN = 3.3 V
- rON = 118 mΩ at VIN = 2.5 V
- rON = 129 mΩ at VIN = 1.5 V
1.8-A Continuous Switch Current (25°C)
Low Threshold Control Input
Controlled Slew-rate
Under-Voltage Lock Out
Quick Output Discharge
Reverse Current Protection

产品应用

Portable Industrial Equipment
Portable Medical Equipment
Portable Media Players
Point Of Sales Terminal
GPS Devices
Digital Cameras
Portable Instrumentation
Smartphones

产品说明

The TPS22929D is a small, low rON load switch with controlled turn on. The device contains a P-channel MOSFET that can operate over an input voltage range of 1.4 V to 5.5 V. The switch is controlled by an on/off input (ON), which is capable of interfacing directly with low-voltage control signals. The TPS22929D is active high enable.

The TPS22929D contains a 150-Ω on-chip load resistor for quick output discharge when the switch is turned off. The rise time of the device is internally controlled in order to avoid inrush current.

The TPS22929D device provides circuit breaker functionality by latching off the power-switch during reverse voltage situations. An internal reverse voltage comparator disables the power-switch when the output voltage (VOUT) is driven higher than the input (VIN) to quickly (10 µs typ) stop the flow of current towards the input side of the switch. Reverse current is always active, even when the power-switch is disabled. Additionally, under-voltage lockout (UVLO) protection turns the switch off if the input voltage is too low.

The TPS22929D is available in a small, space-saving 6-pin SOT23 package and is characterized for operation over the free-air temperature range of –40°C to 85°C.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
TPS22929D	SOT23 (6)	2.90 mm × 1.60 mm
