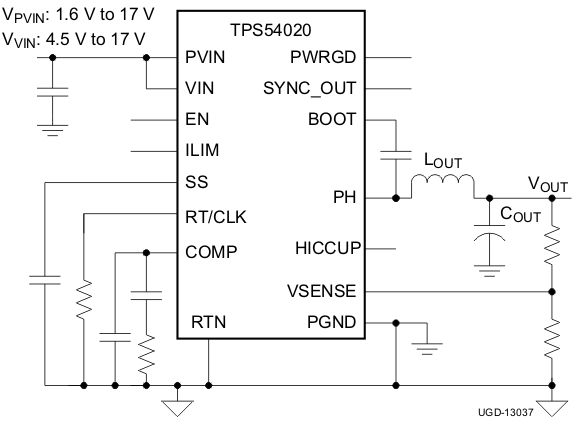

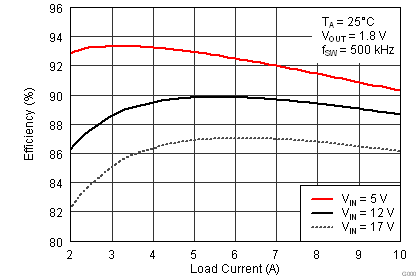

TPS54020 - 产品图解：
TPS54020-转换器（集成开关）-DC/DC开关稳压器-电源管理
TPS54020-小型10A，4.5V 至17V 输入， SWIFT ? 同步降压转换器，此转换器在轻负载时具有高效率 (Rev. C)
TI芯片：
承诺原装正品
专营TI德州仪器，真正优化您的供应链
TI产品 - TPS54020介绍

TPS54020 - 小型10A，4.5V 至17V 输入

TPS54020是TI德州仪器公司的一款转换器（集成开关）产品，TPS54020是小型10A，4.5V 至17V 输入，本站介绍了TPS54020的封装应用图解、特点和优点、功能等，并给出了与TPS54020相关的TI元器件型号供参考。

TPS54020 - 小型10A，4.5V 至17V 输入 - 转换器（集成开关） - DC/DC开关稳压器 - 德州仪器

产品特性
  • Integrated 8-mΩ and 6-mΩ MOSFETs
  • Thermally Enhanced 3.5-mm × 3.5-mm HotRod™ Package
  • Peak Current Mode Control
  • Eco-mode™ Pulse Skip for Higher Efficiency
  • Overcurrent Protection for Both MOSFETs
  • Selectable Overcurrent Protection Schemes
  • Selectable Overcurrent Protection Levels
  • Split Power Rail: 1.6 V to 17 V on PVIN
  • 0.6-V Voltage Reference With ±1% Accuracy
  • 200-kHz to 1.2-MHz Switching Frequency
  • Synchronizes to External Clock
  • Start-Up Into Prebiased Outputs
  • Overtemperature and Overvoltage Protection
  • –40°C to 150°C Operating Junction Temperature Range
  • Adjustable Soft-Start and Power Sequencing
  • Power-Good Output Monitor for Undervoltage and Overvoltage
  • SYNC_OUT Function Provides Output Clock Signal 180° Out-of-Phase
  • Supported by WEBENCH® Software Tool
  • For SWIFT™ Documentation and WEBENCH, visit http://www.ti.com/swift
产品应用
  • Power for FPGAs, SoCs, DSPs and Processors
  • Wireless, Data, and Cloud Infrastructure
  • Gaming, DTV, STB, and Smart Grid Systems
产品说明

The TPS54020 is a 10-A, 4.5-V to 17-V input SWIFT converter. The innovative 3.5 mm × 3.5 mm HotRod package optimizes high-density step-down designs. The TPS54020 is a full-featured converter.

High efficiency is achieved through the innovative integration and packaging of the high-side and low-side MOSFETs. The TPS54020 operates at continuous current mode (CCM) at higher load conditions, and transitions to Eco-mode while skipping pulses to boost the efficiency at light loads.

Current limiting on both MOSFETs provides device and system protection. Cycle-by-cycle current limiting in the high-side MOSFET protects for overload situations. Low-side MOSFET zero current detection turns off the low-side MOSFET while operating under light loads. Three selectable current-limit thresholds allow a good fit for various applications. A hiccup or cycle-by-cycle overcurrent protection scheme is also selectable.

Thermal shutdown protection disables switching when die temperature exceeds the thermal shutdown trip point and enables switching after the built-in thermal hysteresis and shutdown hiccup time.

产品器件信息
PART NUMBERPACKAGEBODY SIZE (NOM)
TPS54020VQFN (15)3.50 mm × 3.50 mm
